Park Audio™
L-Set 121 BT
Application: PA system for multi-purpose spaces, houses of worship, auditoriums, clubs, restaurants, karaoke bars, music bands.
Set Contents:
- Loudspeaker L121BT – 1 pc.
- Loudspeaker L121 – 1 pc.
- Cable SpeakON-SpeakON (8 m) – 1 pc.

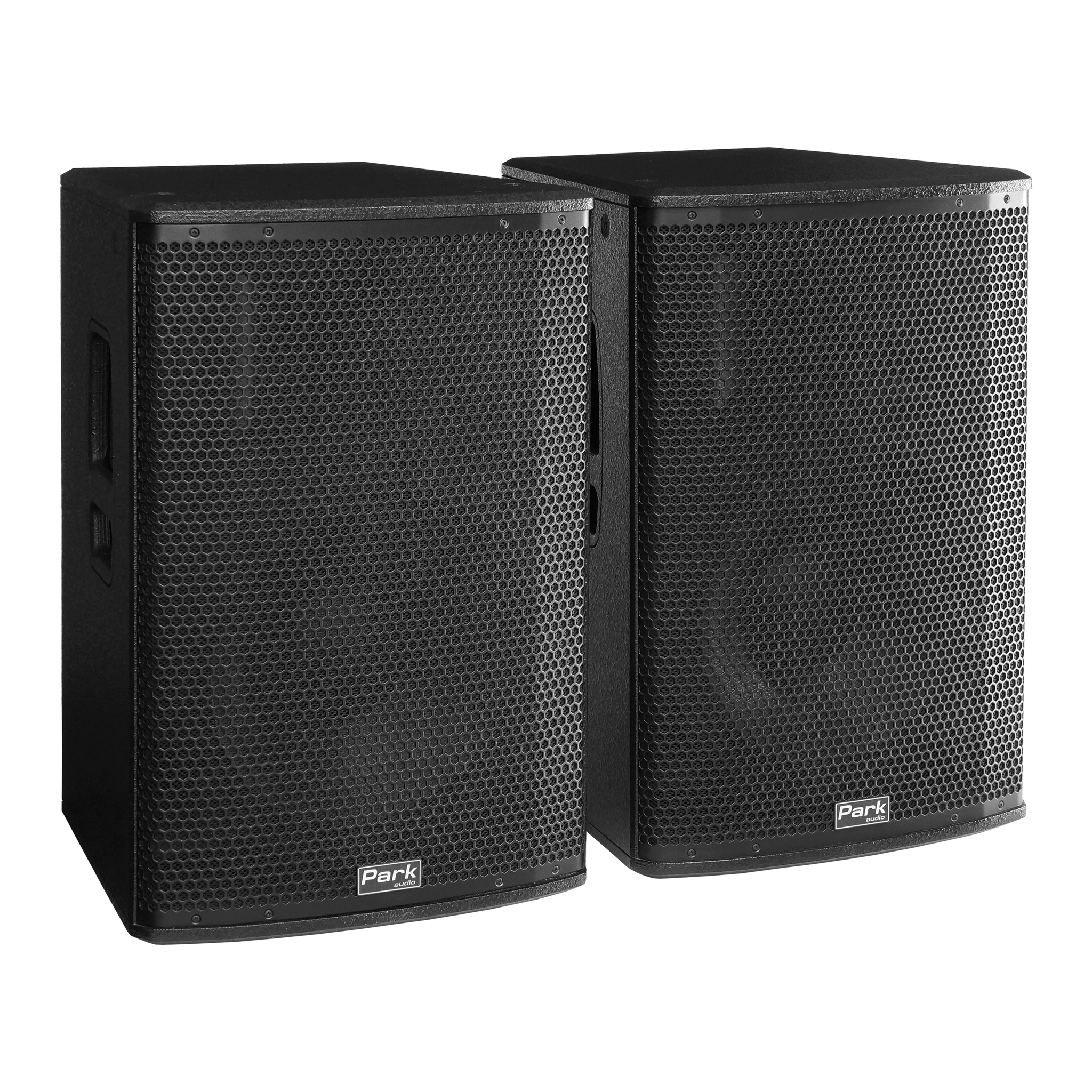

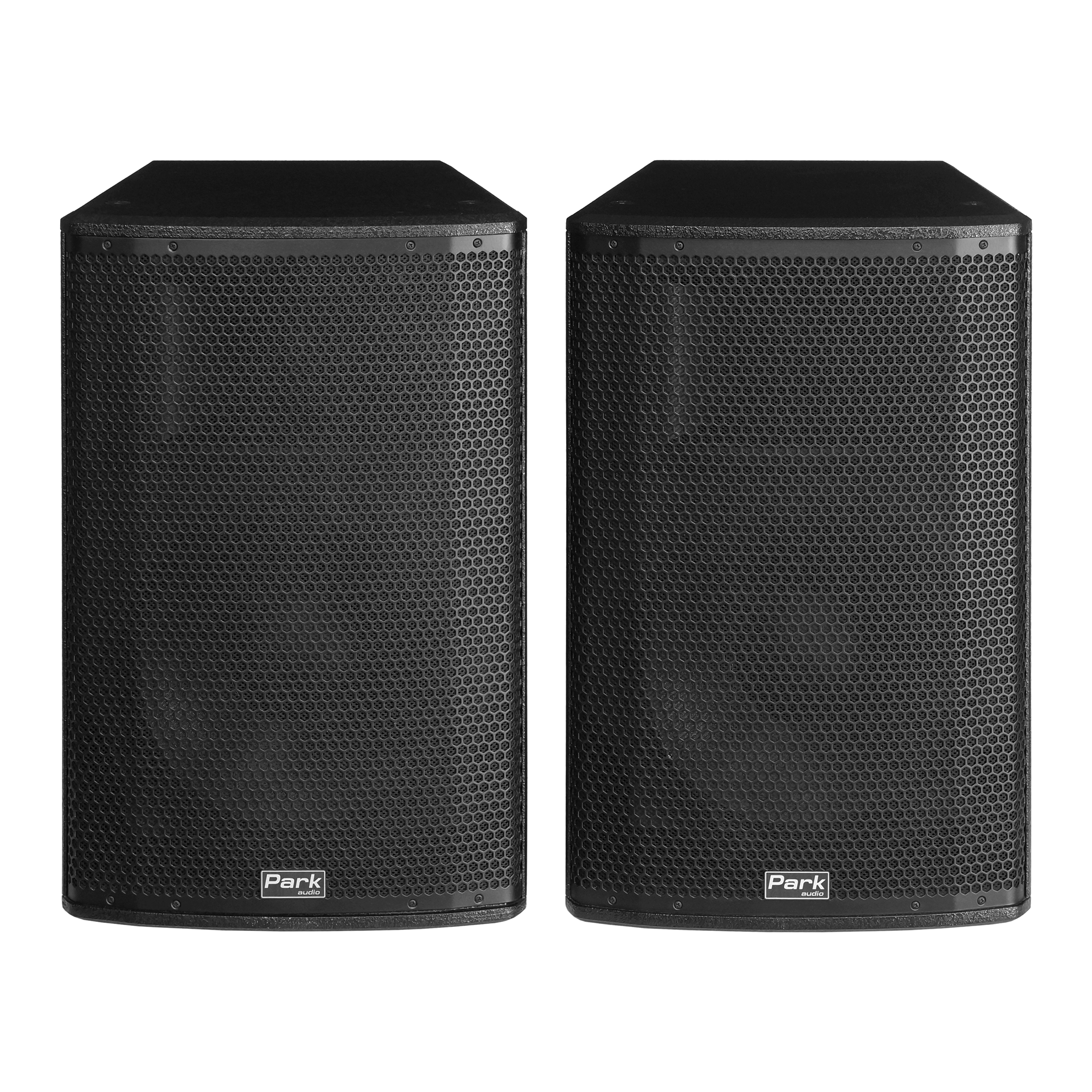

Active PA system L-Set 121 BT
- Total power handling – 700 W
- Total maximum output SPL 126.5 dB SPL
- Set frequency range 53 Hz – 18 kHz
- Quick single cable set mounting
- Flange (35 mm) for the speaker stand
- 6 Mounting holes M10 on each loudspeaker

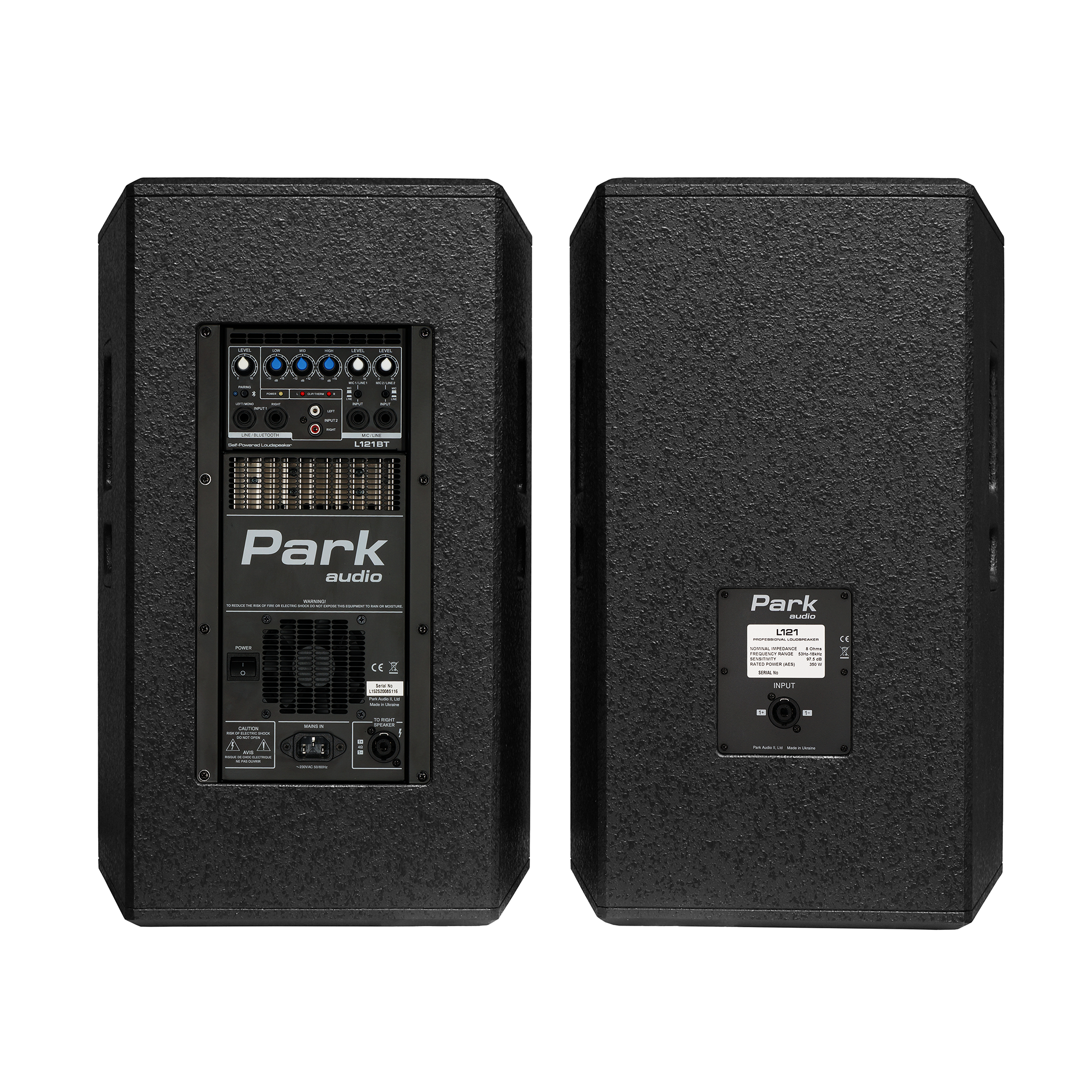

Loudspeakers L121, L121BT
- Configuration – two-way loudspeaker
- Coverage 90°H x 40°V
- Acoustic design – trapezoidal cabinet, bass reflex
- LF speaker (LAVOCE Italiana) – 12″, voice coil 2.5″, ferrite magnet
- HF driver (LAVOCE Italiana) – 1″, voice coil 1″, ferrite magnet
Built-in amplifier (installed into L121BT)
- Power rating (RMS) – 2 х 350 W
- 2 line stereo inputs – 2 х 1/4″TRS JACK, 2 х RCA
- 2 microphone inputs – 1/4″TRS JACK
- Line inputs and Bluetooth input level controls
- Wireless audio streaming via Bluetooth
- Line input level control
- Microphone input level control
- Three-way EQ for microphone inputs
- Microphone inputs sensitivity switches
| MODEL | L-Set 121 BT |
|---|---|
| Kit L-Set 121 BT | |
| Total Kit Power Handling | 600 W |
| Total Maximum Output SPL | 126 dB |
| Frequency Range | 53 Hz - 18 kHz |
| Loudspeaker (L121, L121BT) | |
| Configuration | Two-way loudspeaker |
| Acoustic Design | Trapezoidal cabinet, bass reflex |
| LF driver | 12"dia (Lavoce Italiana), voice coil 2.5" |
| HF driver | 1"dia (Lavoce Italiana), voice coil 1" |
| Power Handling (nominal/continuous) | 300 / 600 W |
| Frequency Range | 53 Hz - 18 kHz |
| Coverage | 90°H x 40°V |
| Maximum Output SPL * | 123 dB/1 m |
| Weight: | |
| – L121 | 20 kg |
| – L121BT | 23 kg |
| Dimensions: | 375 (W) х 575 (H) х 390 (D) mm |
| Built-in Amplifier (в L121BT) | |
| Power Rating (RMS) | 2 х 350 W (4 Ohms), class D |
| Sensitivity: | 775 mV |
| – line input 1/4"JACK | 775 mV (0 dBu) |
| – line input RCA | 250 mV (-10 dBu) |
| – microphone input (MIC/LINE) | 3 mV (- 42 dBu) / 250 mV (-10 dBu) |
| Input Impedance: | |
| – line input RCA | 5 kOhms (unbalanced) |
| – line input 1/4"JACK | 10 kOhms (balanced) |
| – microphone inputs | 1 kOhm (balanced) |
| – microphone inputs (LINE mode) | 10 kOhms (balanced) |
| Signal-to-Noise Ratio | |
| – line inputs | 98 dB |
| – microphone inputs | 94 dB |
| Mic input equalization: | |
| – LF, HF | ±15 dB |
| – MF | ±12 dB |
| Input Connectors: | |
| – line inputs | 2 х RCA, 2 х 1/4"JACK |
| – microphone inputs | 2 х 1/4"JACK |
| Cooling | forced** |
| Power Requirements | ~220/230 V, 50/60 Hz |
| Bluetooth Connection | |
| Bluetooth Version | Bluetooth 4.1, Class 2 |
| Supported Profile | A2DP ver. 1.2 |
| Supported Codec | SBC, AAC |
| Maximum Communication Range | 10 m (without interference) |
| Maximum Output Power (EIRP) | 4 dBm (2.5 mW) |
* For comparison purposes and in accordance with common industry practice, maximum SPL specifications are calculations based upon transducer sensitivity, amplifier output voltage and speaker impedance.
** With smoothly variable intensity. At a normal temperature and low output level the fan is OFF.
