Park Audio™
BETA4215
2-way Loudspeaker
Application:
PA systems for clubs, bars, restaurants, music bands, indoor and outdoor usage.Versions:
- passive – BETA4215,
- active – BETA4215-P,
- active with two-channel amplifier (for stereo loudspeaker set, composed of active and passive loudspeakers):
– with line input – BETA4215-PS;
– with minimixer – BETA4215-PSE;
– with minimixer and effect processor – BETA4215-PSfx.
VERSION:
Other Full Range Loudspeakers:
Loudspeaker:
- Frequency range 50 Hz – 20 kHz
- 15”, 300 W LF driver (EMINENCE) with 2” voice coil
- 1”, 35 W HF supertweeter (EMINENCE) with 1” voice coil
- Maximum peak SPL 123 dB
- Coverage 100°H x 50°V
- Acoustic design – bass reflex
- Cabinet material – birch plywood, black water-polymer finish
- Version: cabinet material – chipboard, carpet finish
- Protective steel grid with powder coating
- Transpanent foam, glued to the inner surface of the grid (option)
- Flange for speaker stand
- 5 mounting holes M10

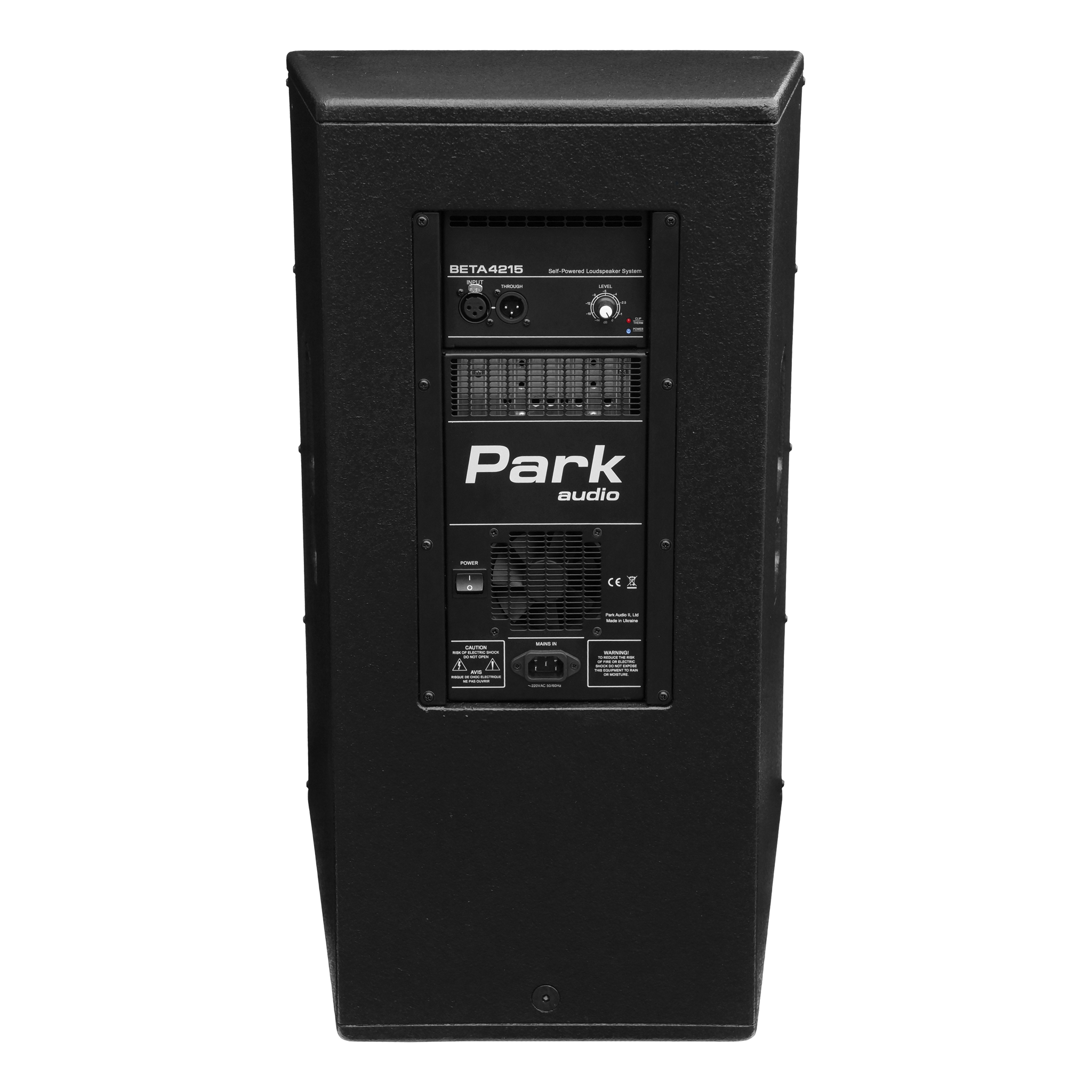

Built-in amplifier:
- Power Rating – 350 W RMS (D class)
- Switching power supply
- Natural cooling system
- Analog input circuit, acting as crossover, EQ, limiting and speaker overload protection
- Amplifier overload, short-circuit, thermal, high frequency and DC output protection
- Soft Signal Start
- Cutoff Frequency Control (HPF)
- Input level control
- Input / Line Output (through) – XLR / XLR
- Detachable power cord
- Polarity Switch (Norm / Rev)
| MODEL | BETA 4215-P |
|---|---|
| Loudspeaker | |
| Power Handling (nominal) * | 300 W |
| Power Handling (continuous) ** | 600 W |
| Maximum Output SPL (continuous) | 123 dB |
| Frequency Range (-10 dB) | 50 Hz - 20 kHz |
| Coverage | 100°H х 50°V (-6 dB) |
| Weight | 24 kg |
| Dimensions | 430 x 685 x 505, mm |
| Built-in Amplifier | |
| Power Rating (RMS) | 350 W, D class |
| Total Harmonic Distortion | 0.05% |
| Line Input Sensitivity | 0.775 V (0 dBu) |
| Line Input Impedance | 10 kOhms (balanced) |
| Line Input Signal-to-Noise Ratio | 98 dB (unweighted) |
| HPF Cutoff Frequency | 45 Hz (24 dB/okt) |
| Power Requirements | ~230 V, 50/60 Hz |
* 2 hours test made with continuous pink noise signal (6 dB crest factor) within the range Fs-10Fs.
** Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
