(with two-channel amplifier)
Park Audio™

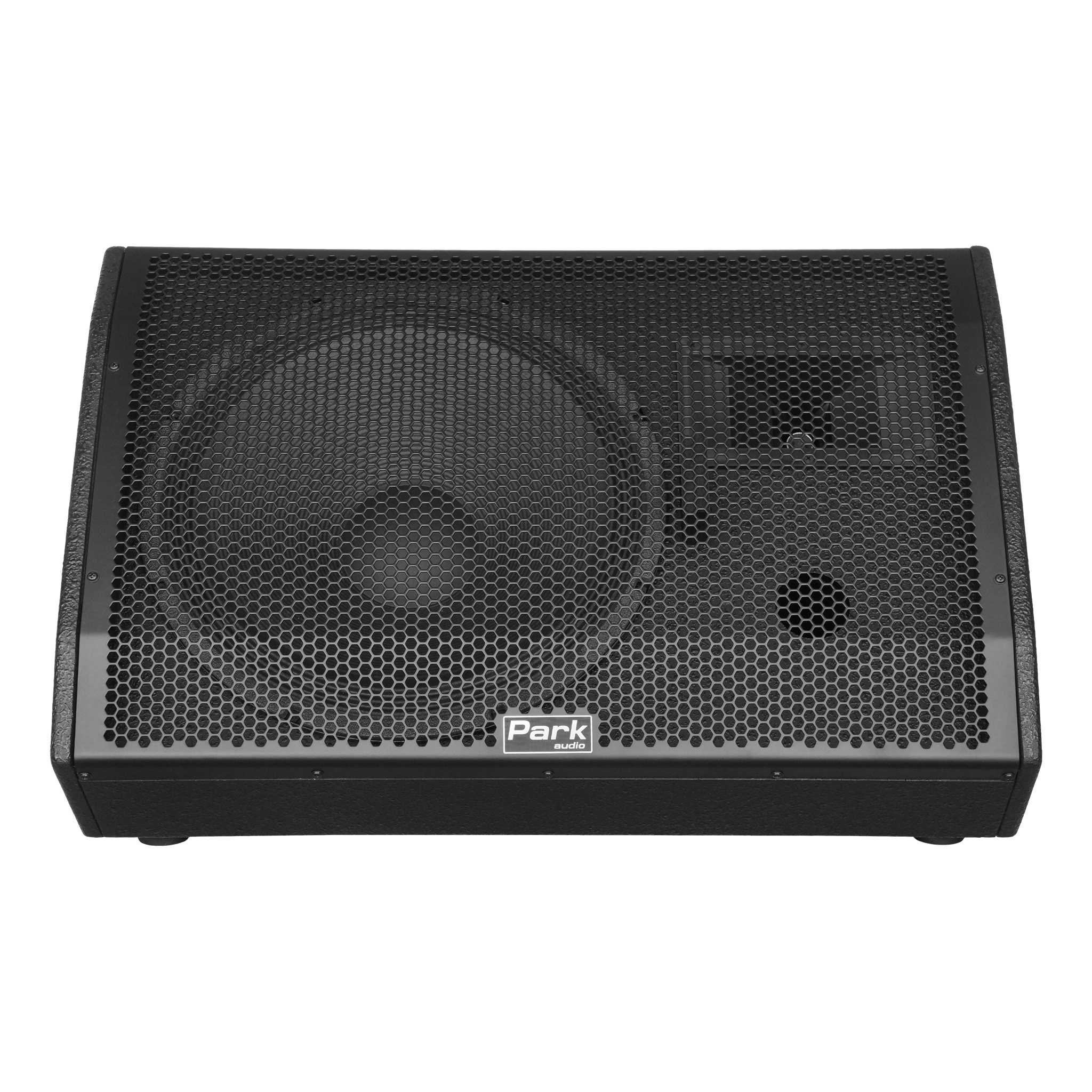

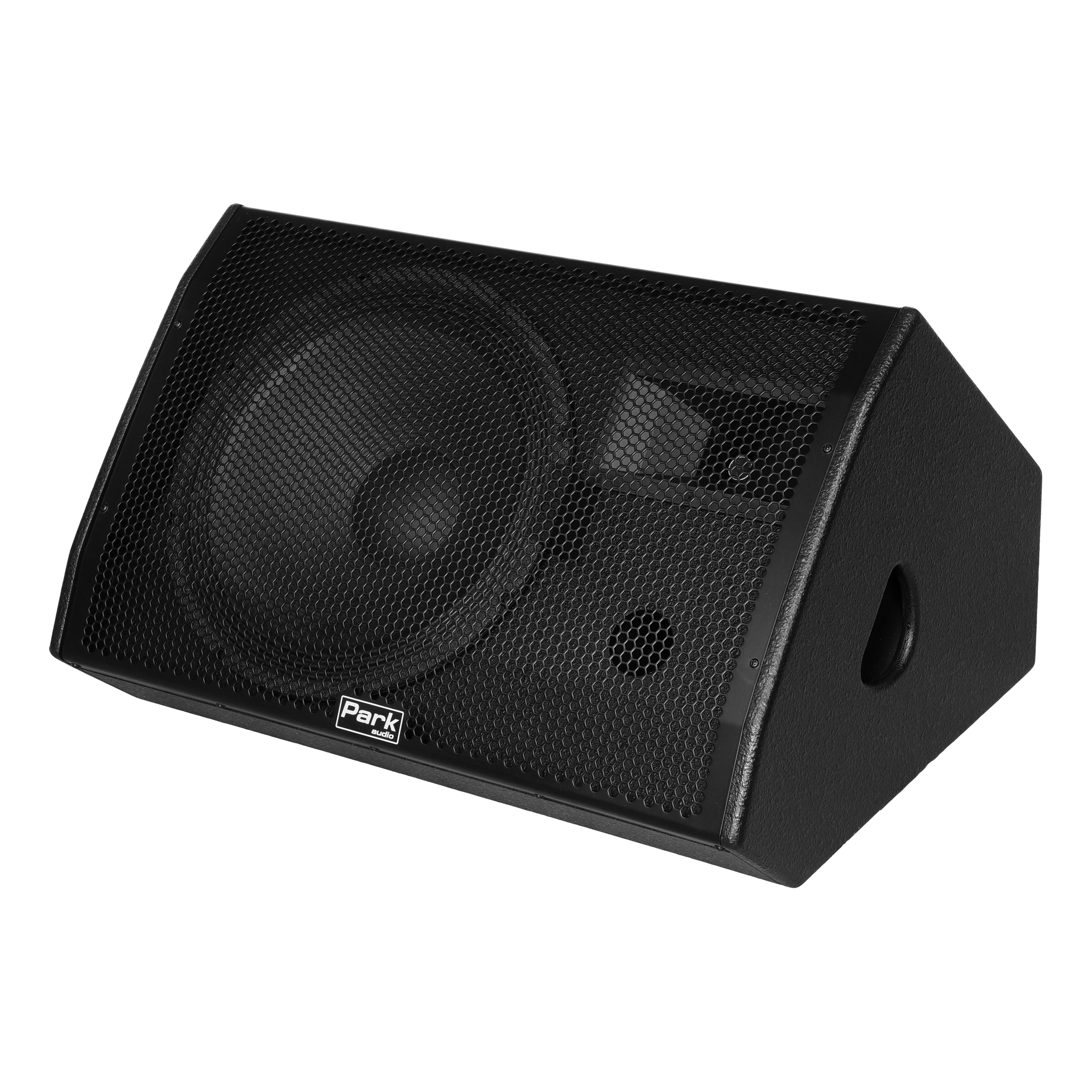

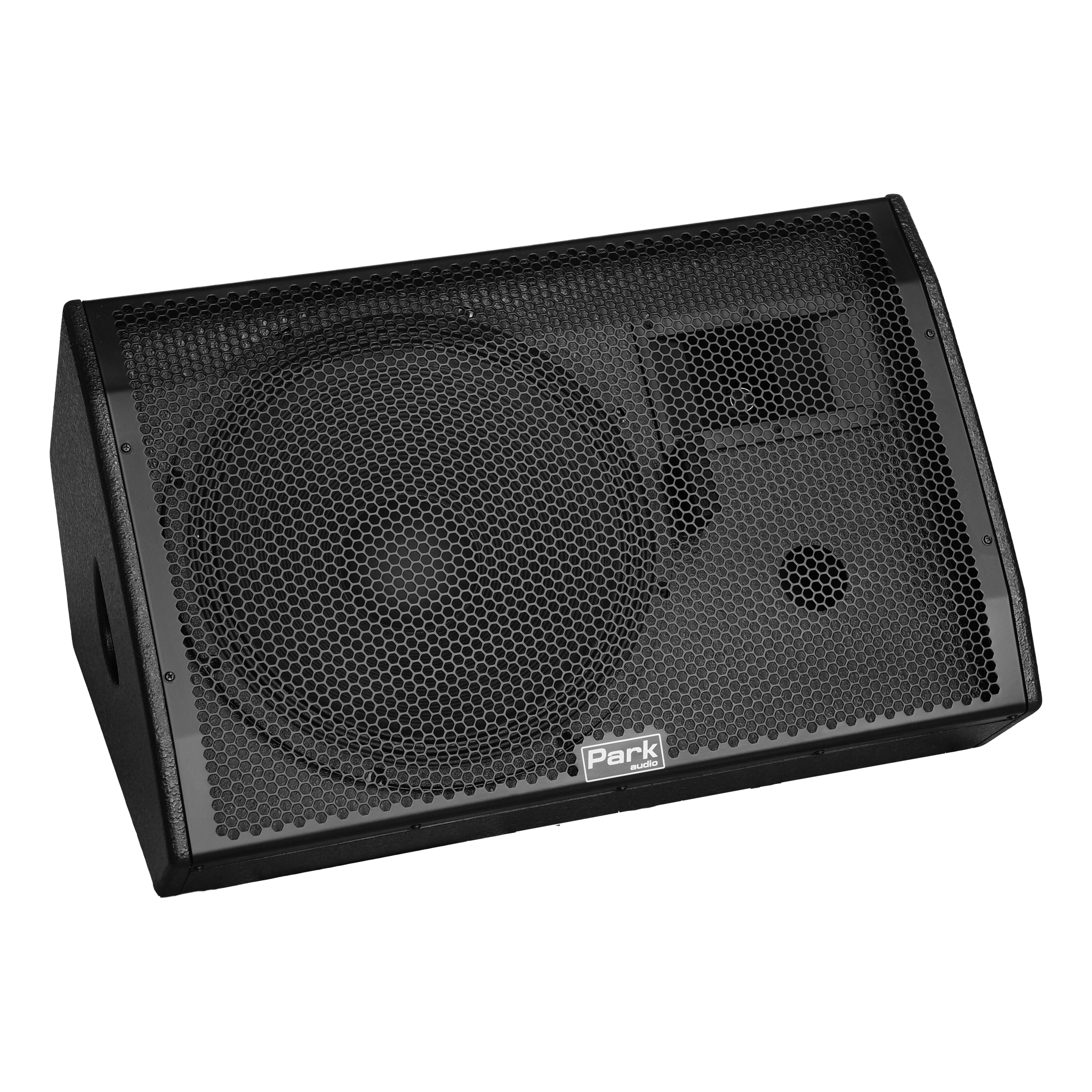

BETA6215M-PS Stage Monitor
Application:
Stage monitor PA systems for insonifying the local areas, creating additional sound field for the singer orientation at the concerts.Versions:
- passive — BETA6215M,
- active — BETA6215M-P,
- active with two-channel amplifier (for stereo loudspeaker set, composed of active and passive loudspeakers) — BETA6215M-PS
VERSION:

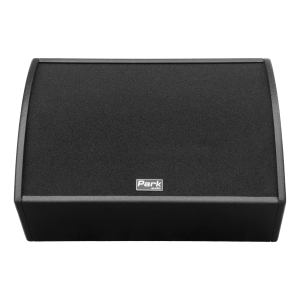

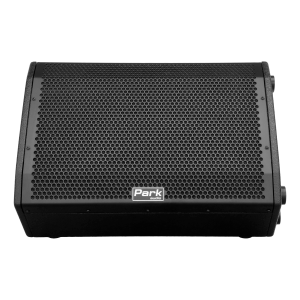

Other Stage Monitors:
Loudspeaker:
- Frequency range 60 Hz – 20 kHz
- 15”, 300 W LF driver (EMINENCE) with 2” voice coil
- 1”, 35 W HF supertweeter (EMINENCE) with 1” voice coil
- Maximum peak SPL 123 dB
- Coverage 100°H x 50°V
- Acoustic design – bass reflex
- Cabinet material – birch plywood, black water-polymer finish
- Version: cabinet material – chipboard, carpet finish
- Protective steel grid with powder coating
- Transpanent foam, glued to the inner surface of the grid
- Flange for speaker stand
- 5 mounting holes M10

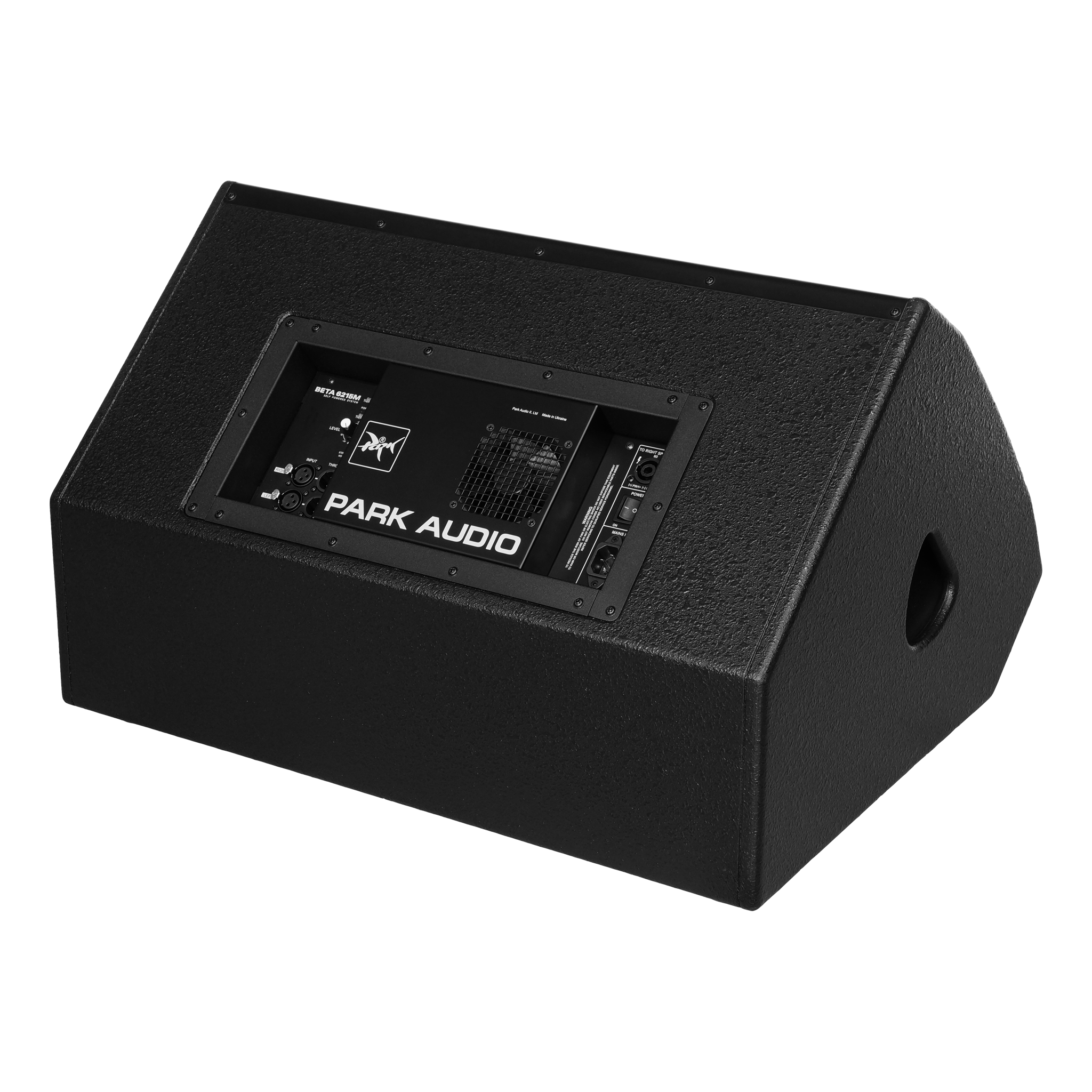

Built-in amplifier:
- Power Rating – 2 x 350 W RMS (D class)
- Switching power supply
- Power Factor Corrector (option)
- Forced cooling system
- Detachable power cord
- Analog input circuit, acting as crossover, EQ, limiting and speaker overload protection
- Amplifier overload, short-circuit, thermal, high frequency and DC output protection
- Cutoff high pass filter
- Soft Signal Start
- Input level control
- Inputs / Line Outputs (through) – 2 х XLR / 2 х XLR
- Output for passive loudspeaker – SPEAKON
| MODEL | BETA 6215M-PS |
|---|---|
| Loudspeaker | |
| Power Handling (nominal) * | 300 W |
| Power Handling (continuous) ** | 600 W |
| Maximum Output SPL (continuous) *** | 123 dB |
| Frequency Range (-10 dB) | 60 Гц - 20 кГц |
| Coverage | 100°H х 50°V (-6 dB) |
| Weight | 21.5 kg |
| Dimensions | 670 x 425 x 530, mm |
| Built-in amplifier | |
| Power Rating (RMS) | 2 х 350 W, D class |
| Total Harmonic Distortion | 0.05 % |
| Sensitivity | 0.775 V |
| Input Impedance | 10 kOhms (balanced) |
| Signal-to-Noise Ratio | 98 dB (unweighted) |
| HPF Cutoff Frequency | 45 Hz (24 dB/oct) |
| Power Requirements | ~220 V, 50/60 Hz |
* 2 hours test made with continuous pink noise signal (6 dB crest factor) within the range Fs-10Fs.
** Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
*** Maximum output SPL indicated. For comparison purposes and in accordance with common industry practice, maximum SPL specifications are calculations based upon transducer sensitivity, amplifier output voltage and speaker impedance.
