Park Audio™

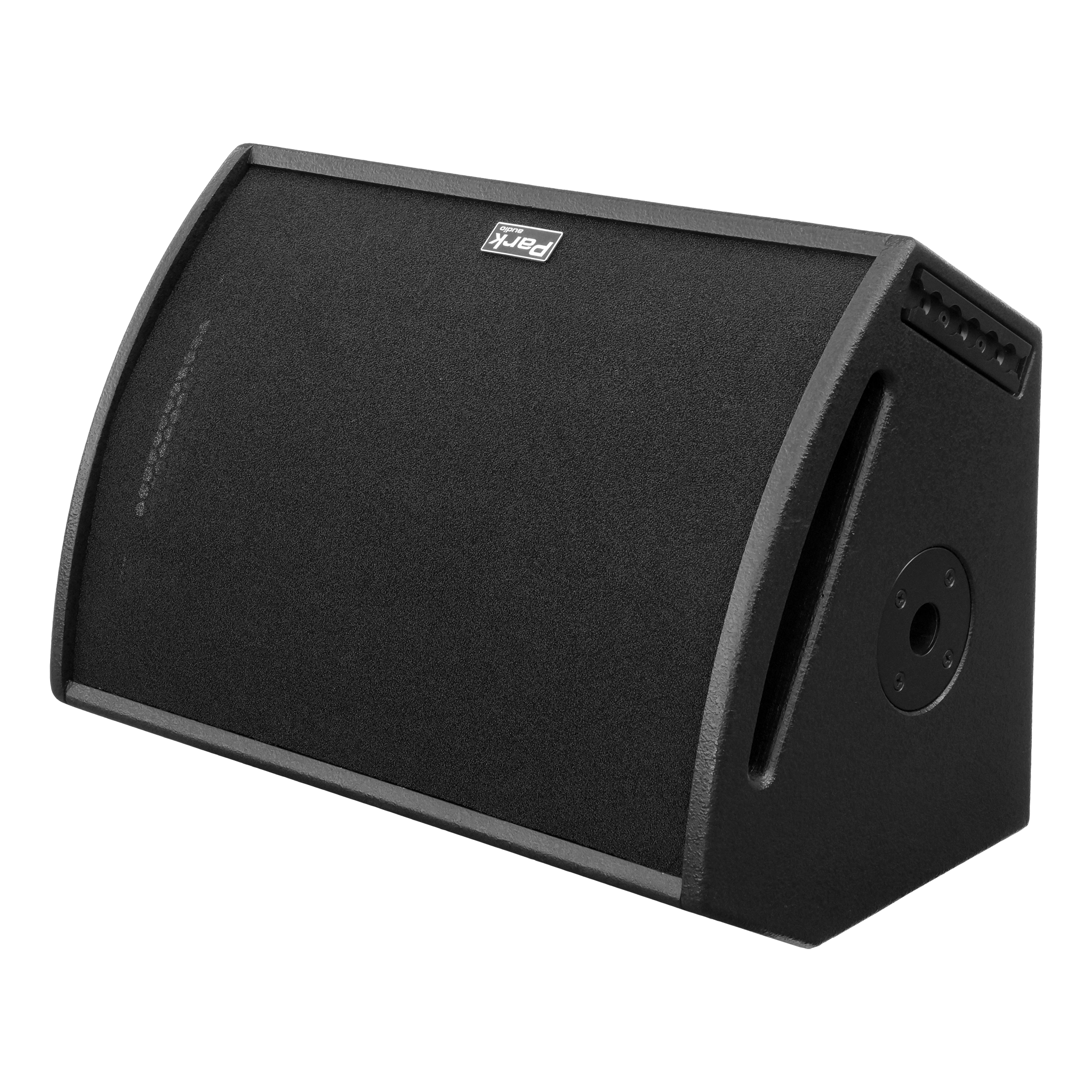

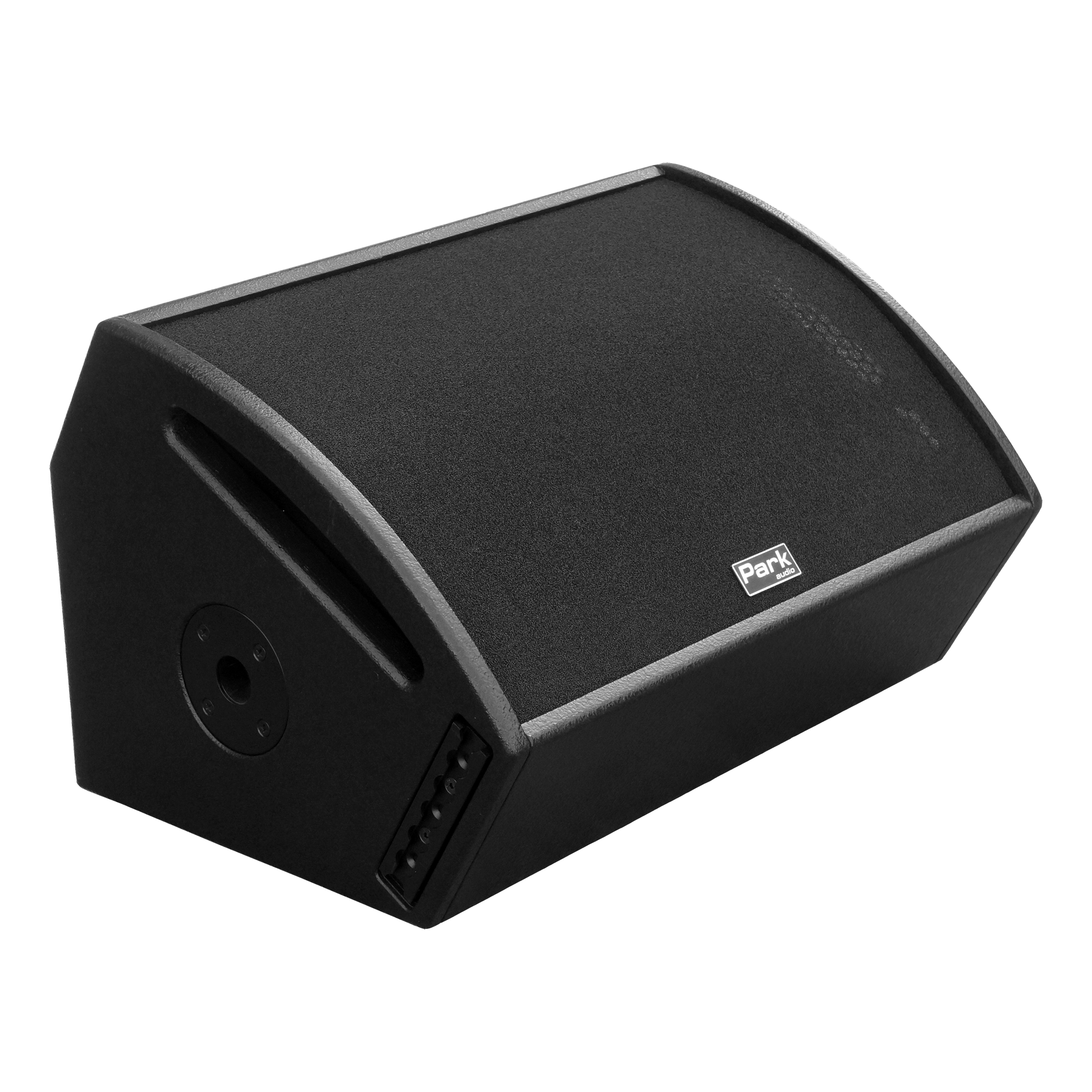

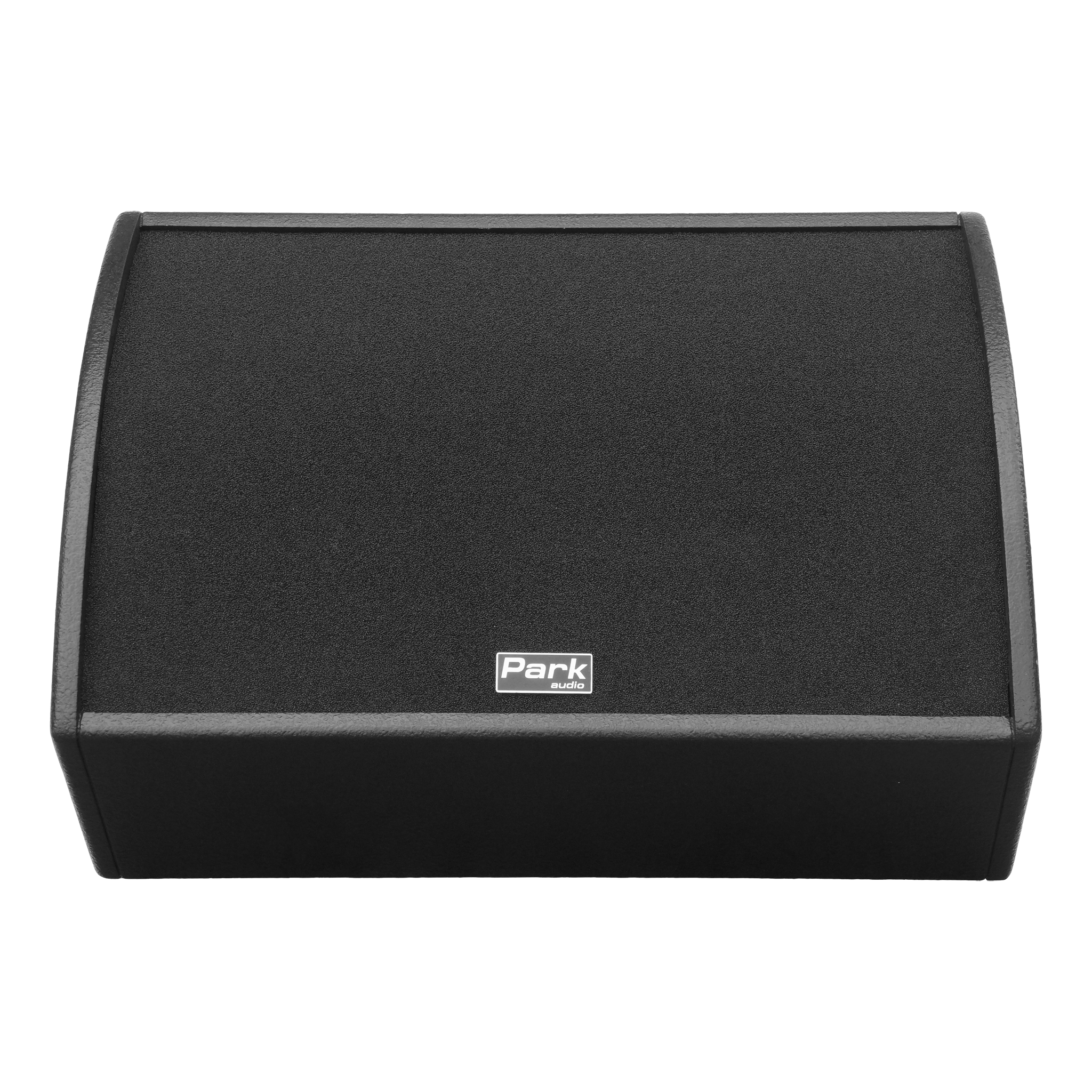

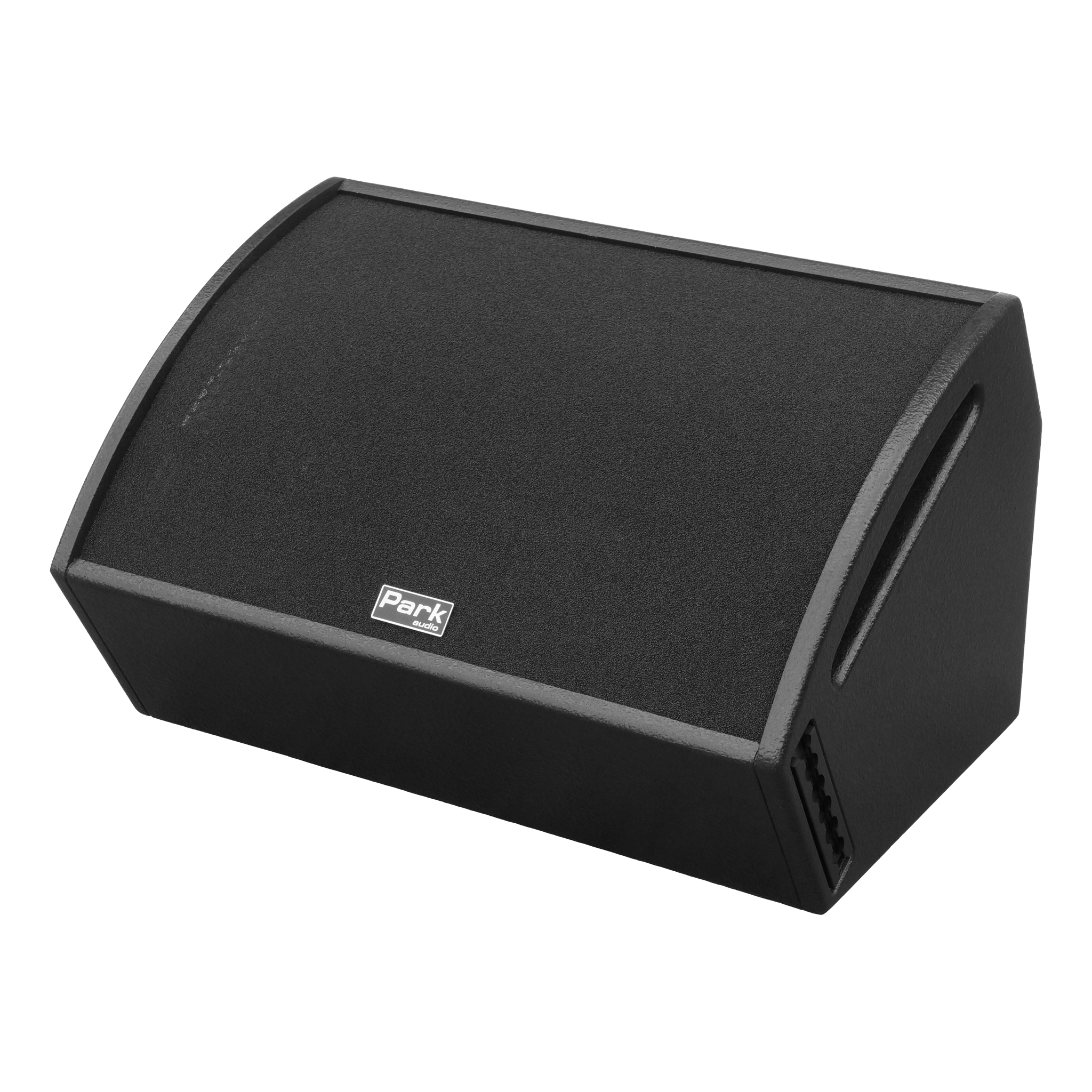

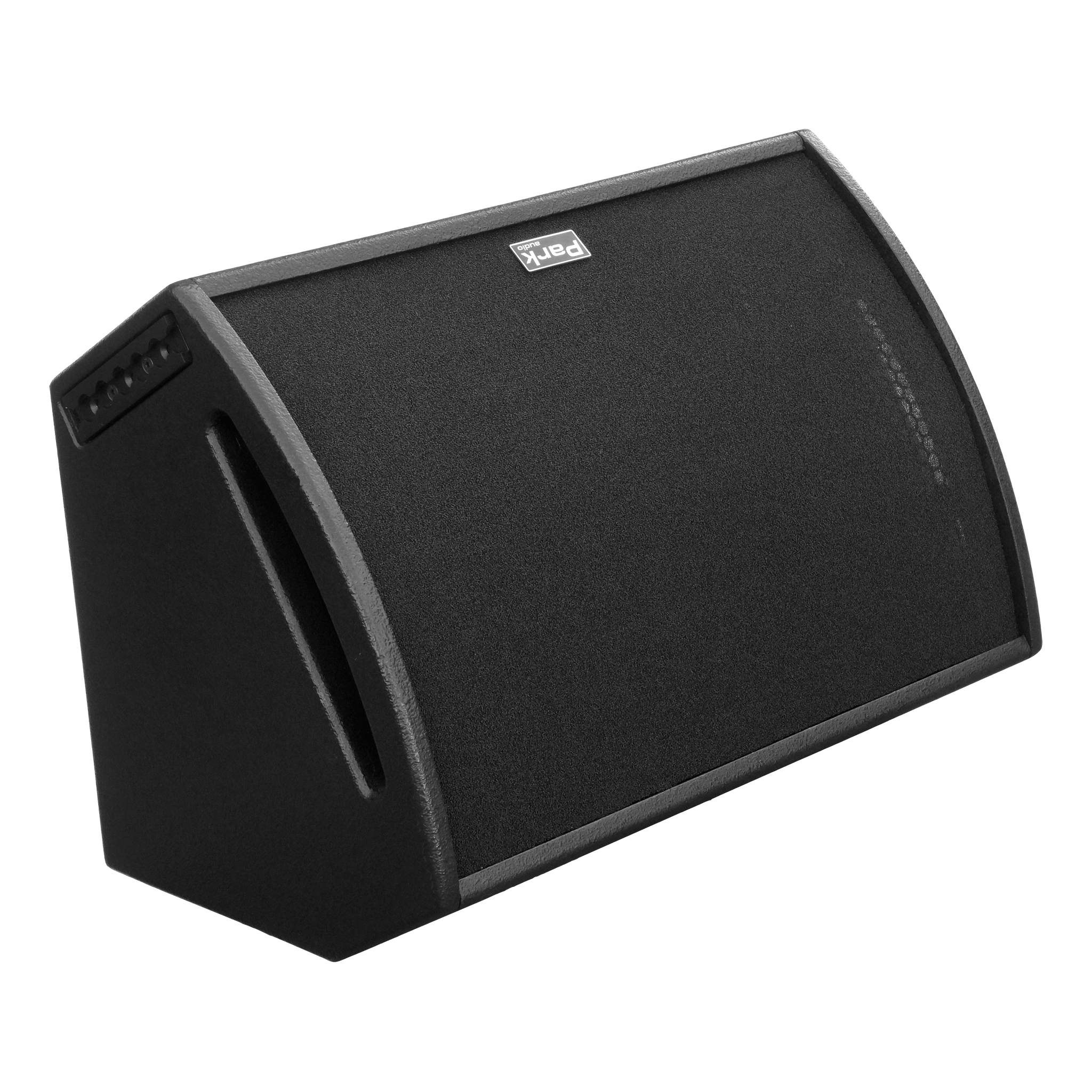

CX5115M 2-way Stage Monitor
Application:
Stage monitor PA systems for insonifying the local areas, creating additional sound field for the singer orientation at the concerts and also using as a satellite in two-way PA systems.Versions:
- passive
- Maximum output SPL SPL 125 dB
- Frequency range 62 Гц — 20 кГц
- Coaxial driver (B&C SPEAKERS):
- LF section — 15”, 400 W, 3” voice coil
- HF section – 2,33”, 80 W, 3” voice coil
- Coverage 80° conical
- Acoustic design – bass reflex
- Full Range и Bi-Amp mode
- Flange for speaker stand
- 3 mounting holes M10
- Cabinet material – birch plywood, black water-polymer finish
- Protective steel grid with powder coating
- Transpanent foam, glued to the external surface of the grid

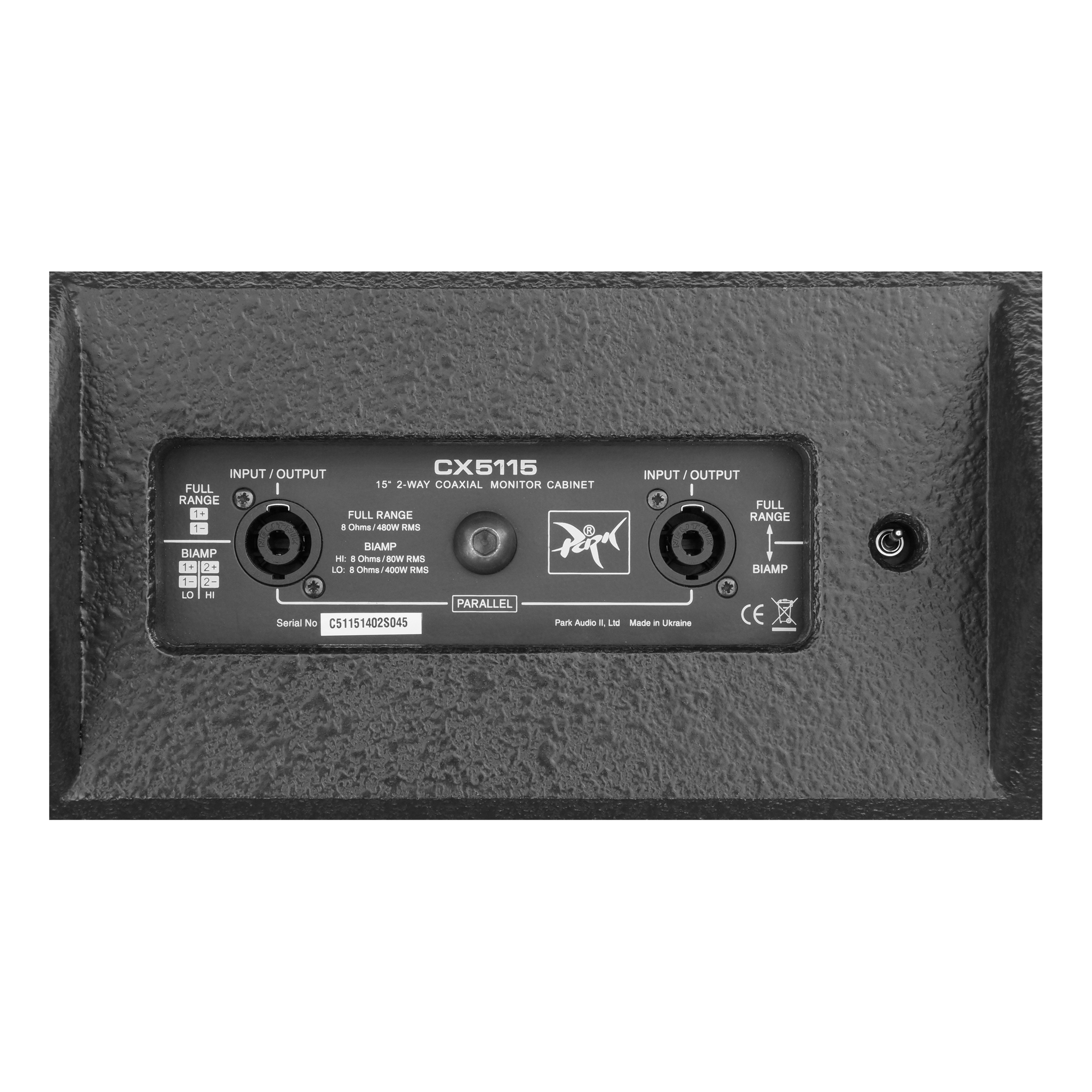

- Input connection – SpeakOn
| MODEL | CX5115M |
|---|---|
| Power Handling (nominal) *: | |
| - Full Range | 480 W |
| - Bi-Amp | 400 W (LF) / 80 W (HF) |
| Power Handling (continuous) **: | |
| - Full Range | 960 W |
| - Bi-Amp | 800 W (LF) / 160 W (HF) |
| Sensitivity (1 W, 1 m) ***: | |
| - LF | 99 dB |
| - HF | 106 dB |
| Maximum Output SPL | 125 dB |
| Maximum Peak Output SPL | 131 dB |
| Nominal impedance (Full Range) | 8 Ohms |
| Nominal impedance (Bi-Amp): | |
| - LF | 8 Ohms |
| - HF | 8 Ohms |
| Frequency Range(-10 dB) | 62 Hz - 20 kHz |
| Crossover | 1.2 kHz, 12 dB/oct. |
| Coverage (-6 dB) | 80° conical |
| Weight | 27 kg |
| Dimensions | 615 x 400 x 470, mm |
* 2 hours test made with continuous pink noise signal (6 dB crest factor) within the range Fs-10Fs.
** Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
*** Average SPL value within the 200 to 10000 Hz frequency range, measured in full-space environment.
