- D class power amplifier
- Switching power supply
- Power factor corrector
- Forced cooling
- Detachable power cord

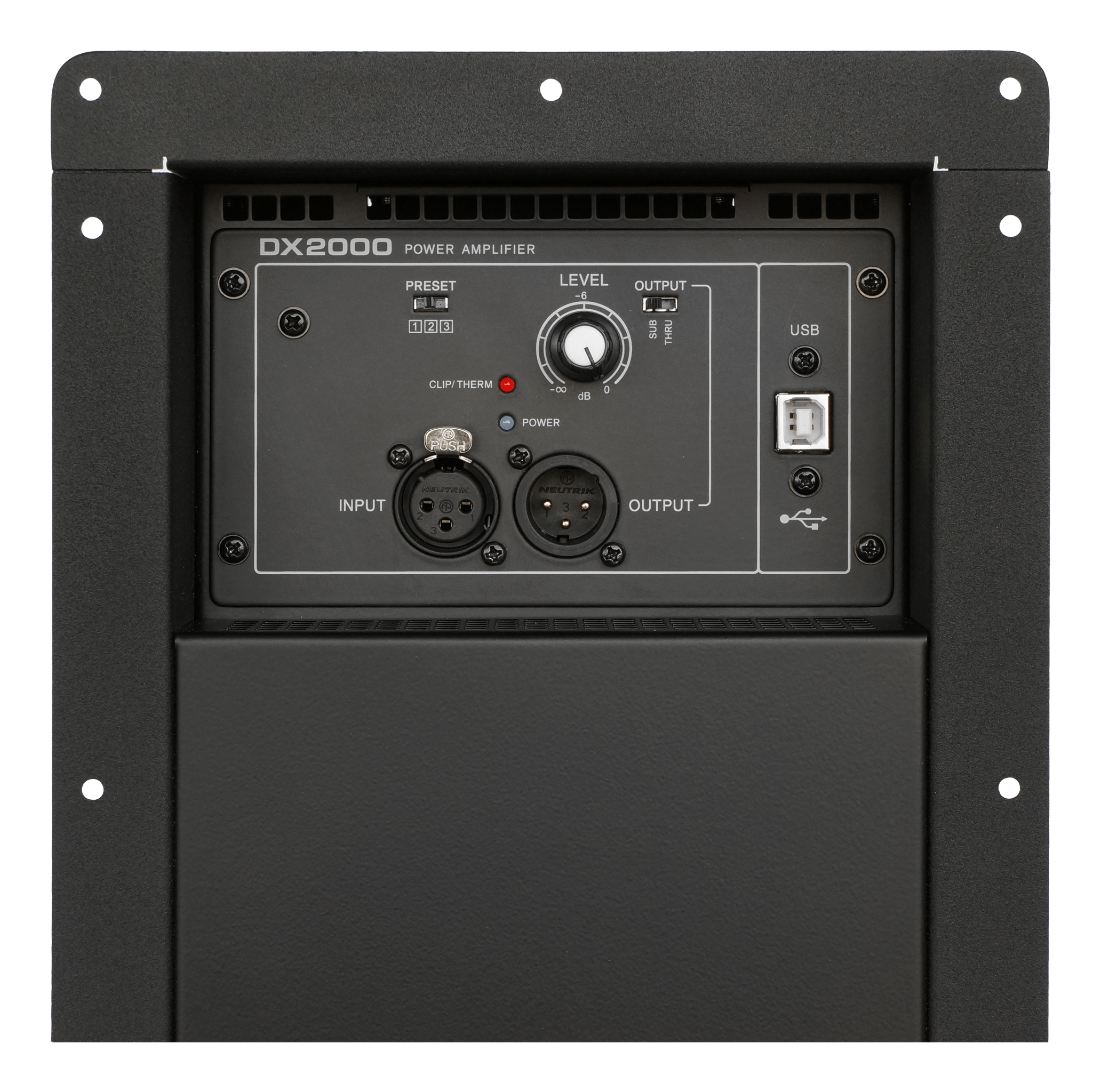

- Input section with DSP
- USB port for DSP setting
- 3-position preset switch
- Line input – XLR
- Line output – XLR
- Line output switch: THRU/SAT (THRU – parallel connection to input, SAT – send processed signal to line output)
- Input level control
- Overload and short-circuit protection
- DC output protection
- Thermal protection
- High frequency protection
| MODEL | DX2000-4 DSP PFC | DX2000-8 DSP PFC |
|---|---|---|
| Power Rating, 4Ω | 2000 W | – |
| Power Rating, 8Ω | 1000 W | 2000 W |
| Frequency Range* (0, - 0.5 dB) | 45 Hz - 20 kHz | 45 Hz - 20 kHz |
| Total Harmonic Distortion (45 Hz - 20 kHz) | 0.05 % | 0.05 % |
| Damping Factor ( 8Ω, 200 Hz ) | > 200 | > 200 |
| Slew Rate | 20 V/uS | 20 V/uS |
| Signal-to-Noise Ratio | 98 dB | 98 dB |
| Sensitivity** | 0.775 В | 0.775 V |
| Power Requirements | ~160-280 V, 50/60 Hz | ~160-280 V, 50/60 Hz |
| Weight | 4.3 kg | 4.3 kg |
| Dimensions (W х H х D) | 198 х 408 х 104 mm | 198 х 408 х 104 mm |
* Frequency range is defined by DSP settings.
** Basic setting, can be changed by DSP.
