Two-channel Amplifier Modules

For stereo speaker sets

Park Audio™

Version

With analog input section:
— input section with stereo line input and output,  input level control and MONO-STEREO switch
— input section with stereo line input, microphone input, line and mic level controls and 3-way  line and mic EQ,
— input section with stereo line input, microphone input, line and mic level controls,   line and mic EQ and effect processors

With DSP input sections:
— input section with stereo line input, switched line output, level control and preset switch

INPUT SECTION:

Analog input section
— with stereo line input
— with stereo line input and microphone input
— with stereo line input, microphone input and effect processor

DSP input section
— with stereo line input and switched line output

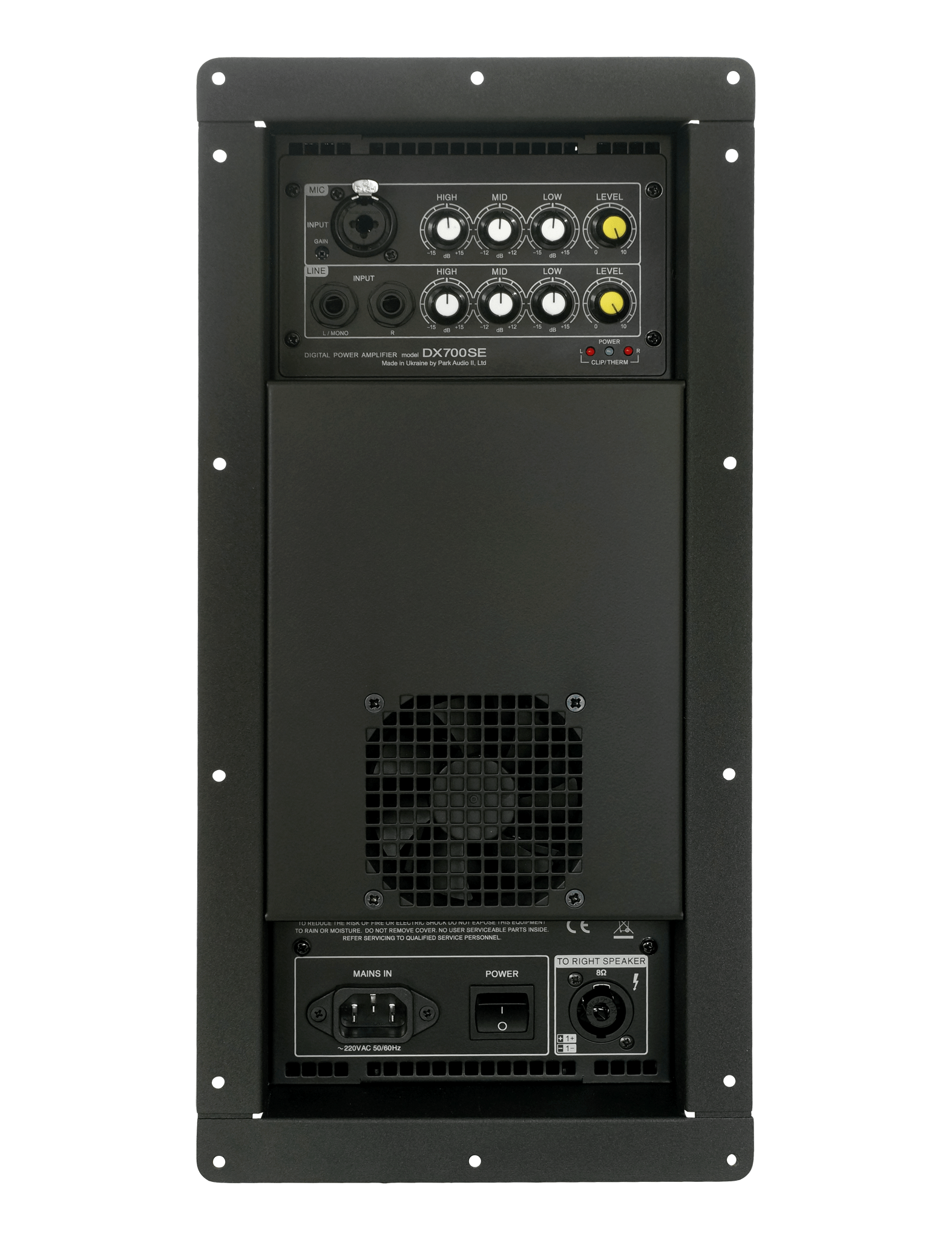

DX700SE

Встраиваемый усилитель DX700SE

2 x350 W

read more

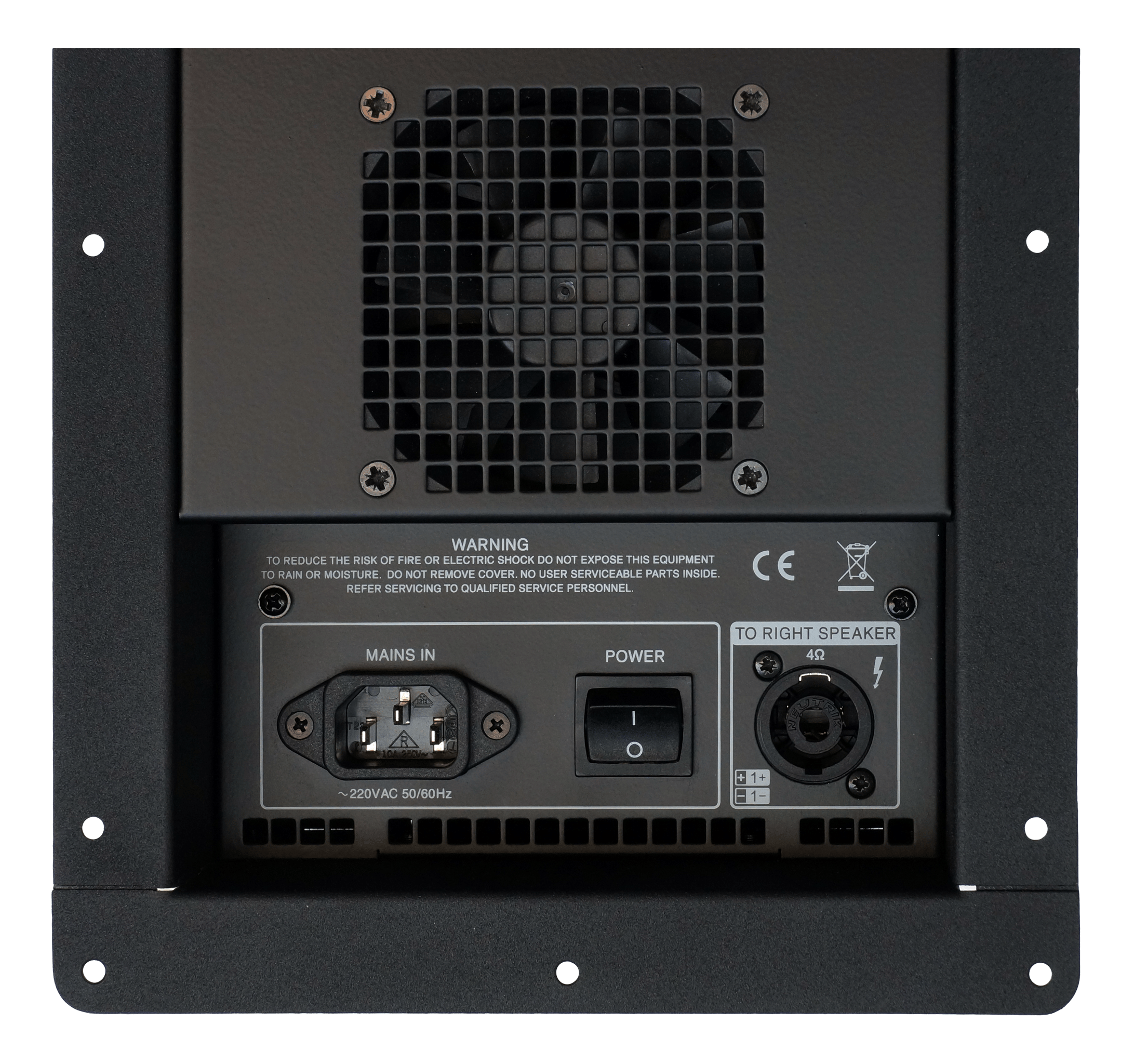

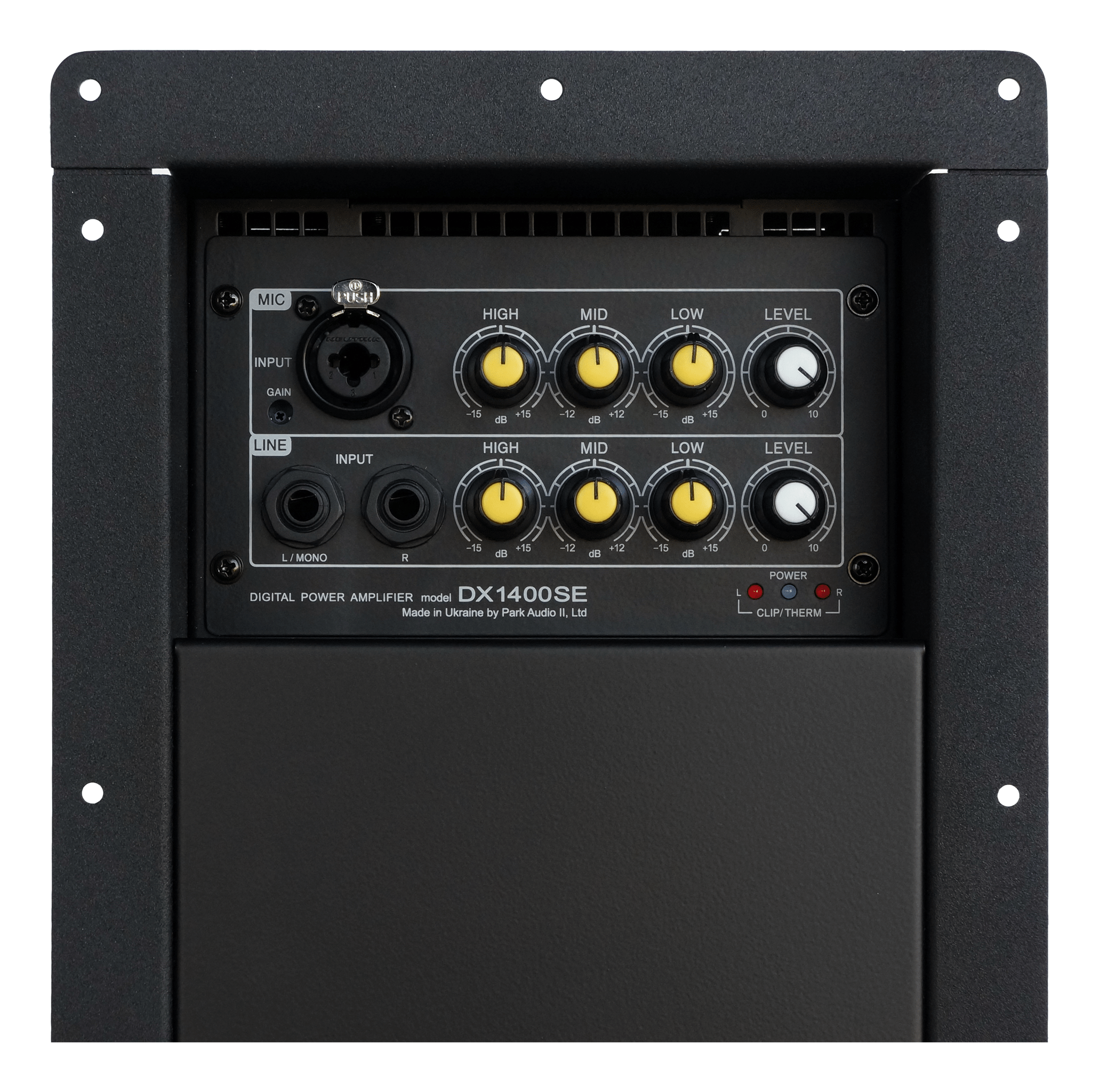

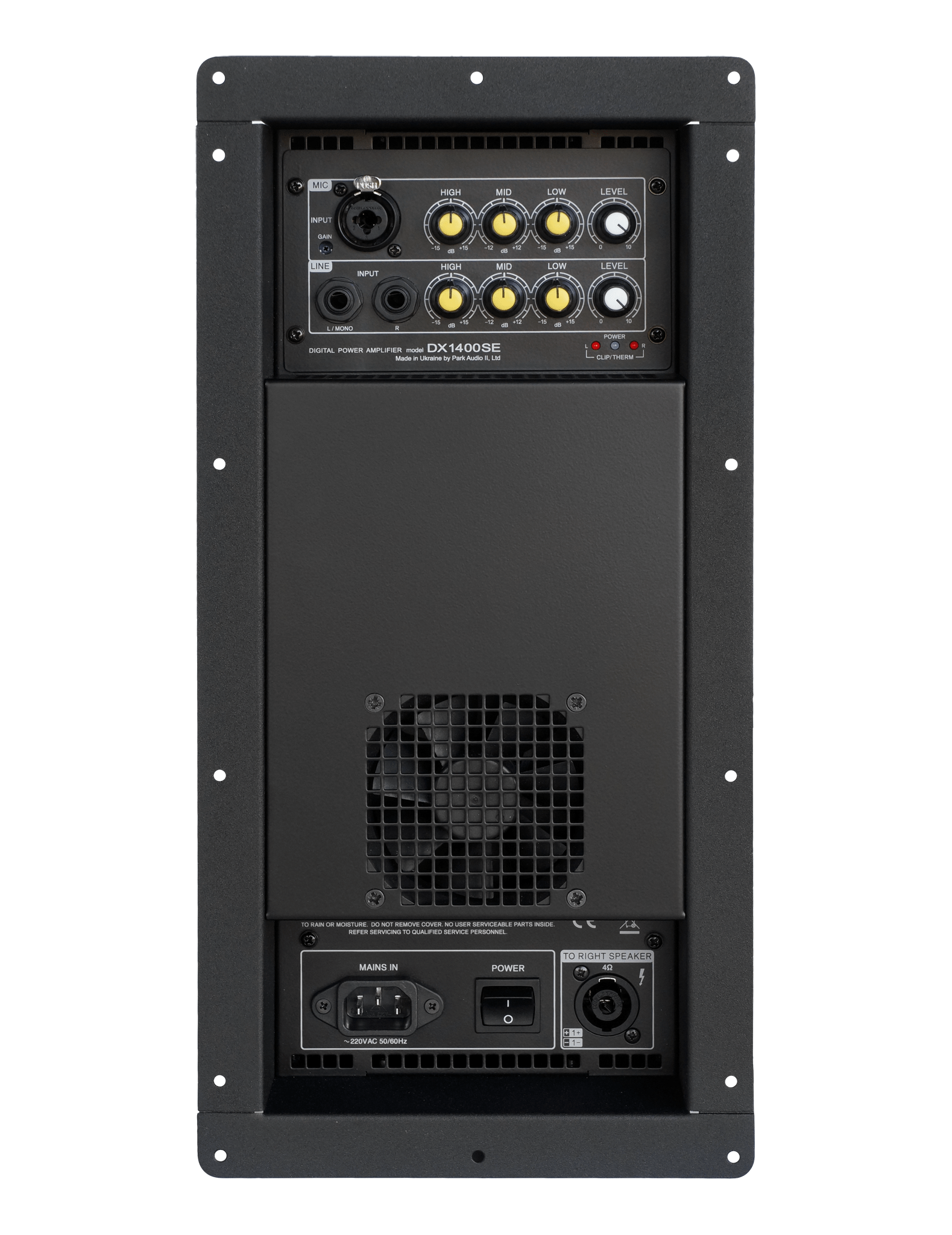

DX1400SE

Встраиваемый усилитель DX1400SE

2 x 700 W @ 4Ω

read more

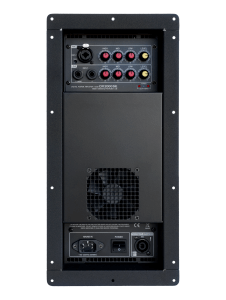

DX2000SE PFC

Встраиваемый усилитель DX2000SE PFC

2 x 1000 W @ 4Ω, PFC

read more

  • D class power amplifier
  • Switching power supply
  • Power factor corrector (DX700SE, DX1400SE – optional)
  • Forced cooling
  • Detachable power cord
  • Analog input section, acting as high pass filter, EQ, limiting and speaker overload protection
  • Line inputs — 2 х 1/4″JACK
  • Microphone input — Combo XLR-1/4″JACK
  • Output for passive loudspeaker — SPEAKON
  • Line input level control
  • Line input three-way EQ
  • Microphone gain control
  • Microphone input level control
  • Microphone input three-way EQ
  • Overload and short-circuit protection
  • DC output protection
  • Thermal protection
  • High frequency protection
MODELDX700SE-4DX700SE-8DX1400SE-4DX2000SE-4 PFC
Power Rating*, 4Ω2 х 350 W–2 х 700 W2 х 1000 W
Power Rating*, 8Ω2 х 200 W2 х 350 W2 х 380 W2 х 500 W
Frequency Range**(0, - 0.5 dB)45 Hz - 20 kHz45 Hz - 20 kHz45 Hz - 20 kHz45 Hz - 20 kHz
Total Harmonic Distortion (45 Hz - 20 kHz)0.05 %0.05 %0.05 %0.05 %
Damping Factor ( 8Ω, 200Hz )> 200> 200> 200> 200
Slew Rate20 V/uS20 V/uS20 V/uS20 V/uS
Line Input Signal-to-Noise Ratio98 dB98 dB98 dB98 dB
Microphone Input Signal-to-Noise Ratio94 dB94 dB94 dB94 dB
Line Input Sensitivity**0.775 V0.775 V0.775 V0.775 V
Microphone Input Sensitivity3-200 mV3-200 mV3-200 mV3-200 mV
Line Input Equalization LOW and HIGH±15 dB±15 dB±15 dB±15 dB
Line Equalization MID±12 dB±12 dB±12 dB±12 dB
Microphone Input Equalization LOW and HIGH±15 dB±15 dB±15 dB±15 dB
Microphone Input Equalization MID±12 dB±12 dB±12 dB±12 dB
HPF cutoff frequency **45 Hz45 Hz45 Hz45 Hz
Power Requirements~230 V, 50/60 Hz~230 V, 50/60 Hz~~230 V, 50/60 Hz~160-280 V, 50/60 Hz
Weight (without FC / with PFC)3.8 / 4.1 kg3.8 / 4.1 kg4 / 4.3 kg- / 4.3 kg
Dimensions (W х H х D)198 х 408 х 104 mm198 х 408 х 104 mm198 х 408 х 104 mm198 х 408 х 104 mm
*    At mains voltage:
–   ~230 V for amplifier without Power Factor Correction (PFC);
–   ~160-280 V for amplifier with Power Factor Correction (PFC).
**  Basic model.
