- D class power amplifier
- Switching power supply
- Power factor corrector (optional)
- Forced cooling
- Detachable power cord
- Input section with DSP
- USB port for DSP setting
- Two 3-positions preset switch
- Line inputs – XLR
- Line outputs (parallel to line input) – XLR
- Output for passive subwoofer – SPEAKON
- Input level control
- Subwoofer level control
- Overload and short-circuit protection
- DC output protection
- Thermal protection
- High frequency protection

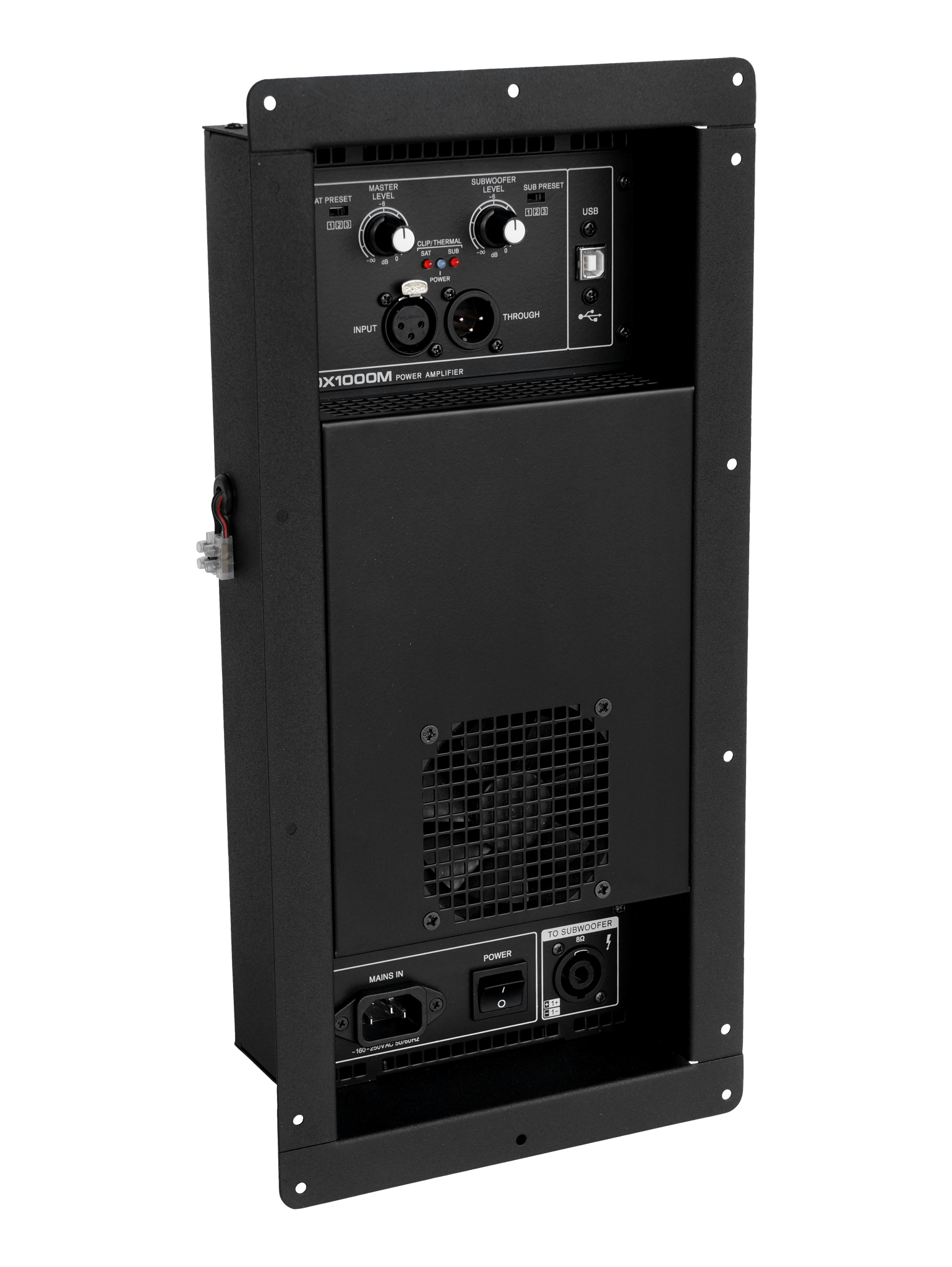

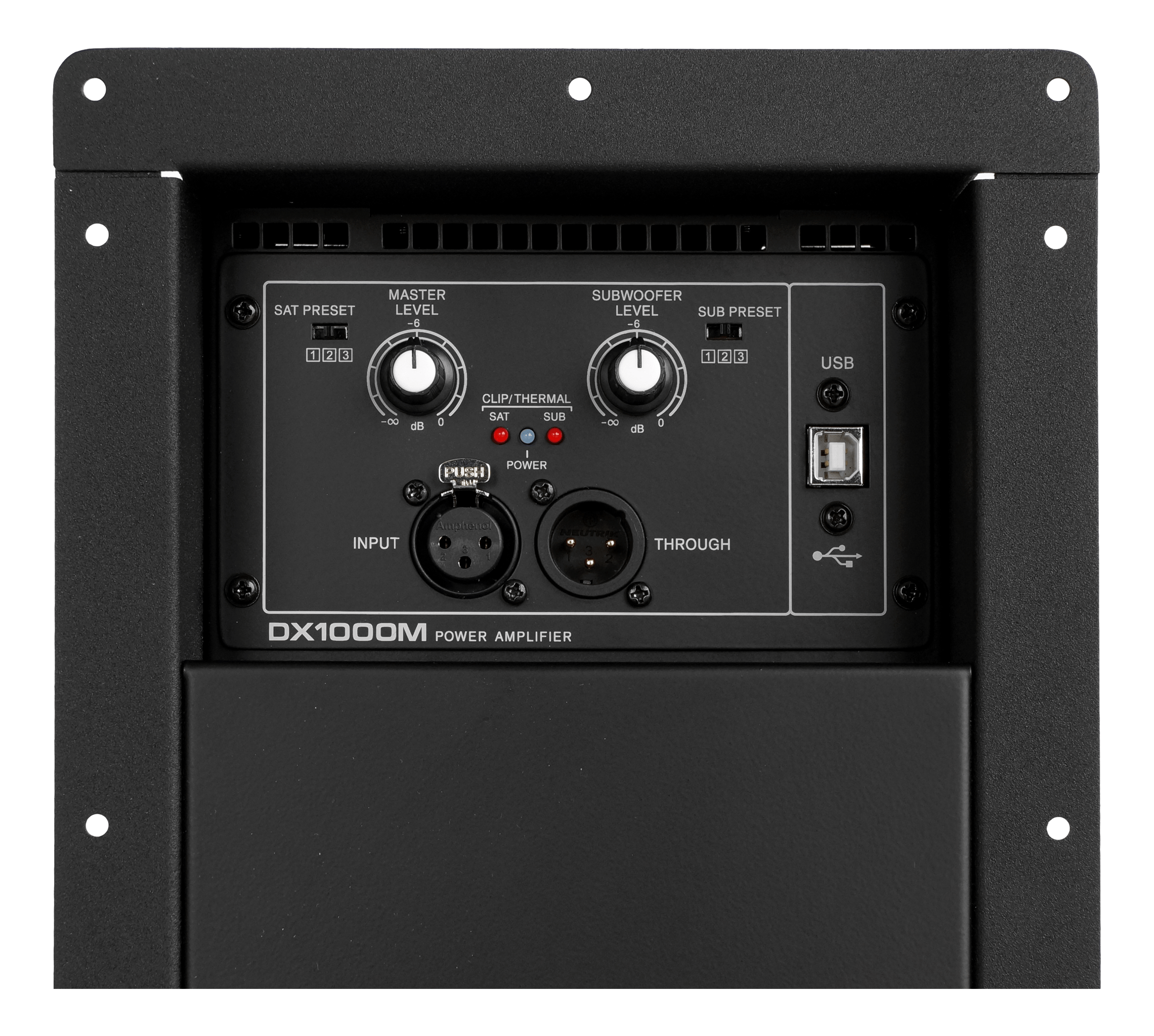

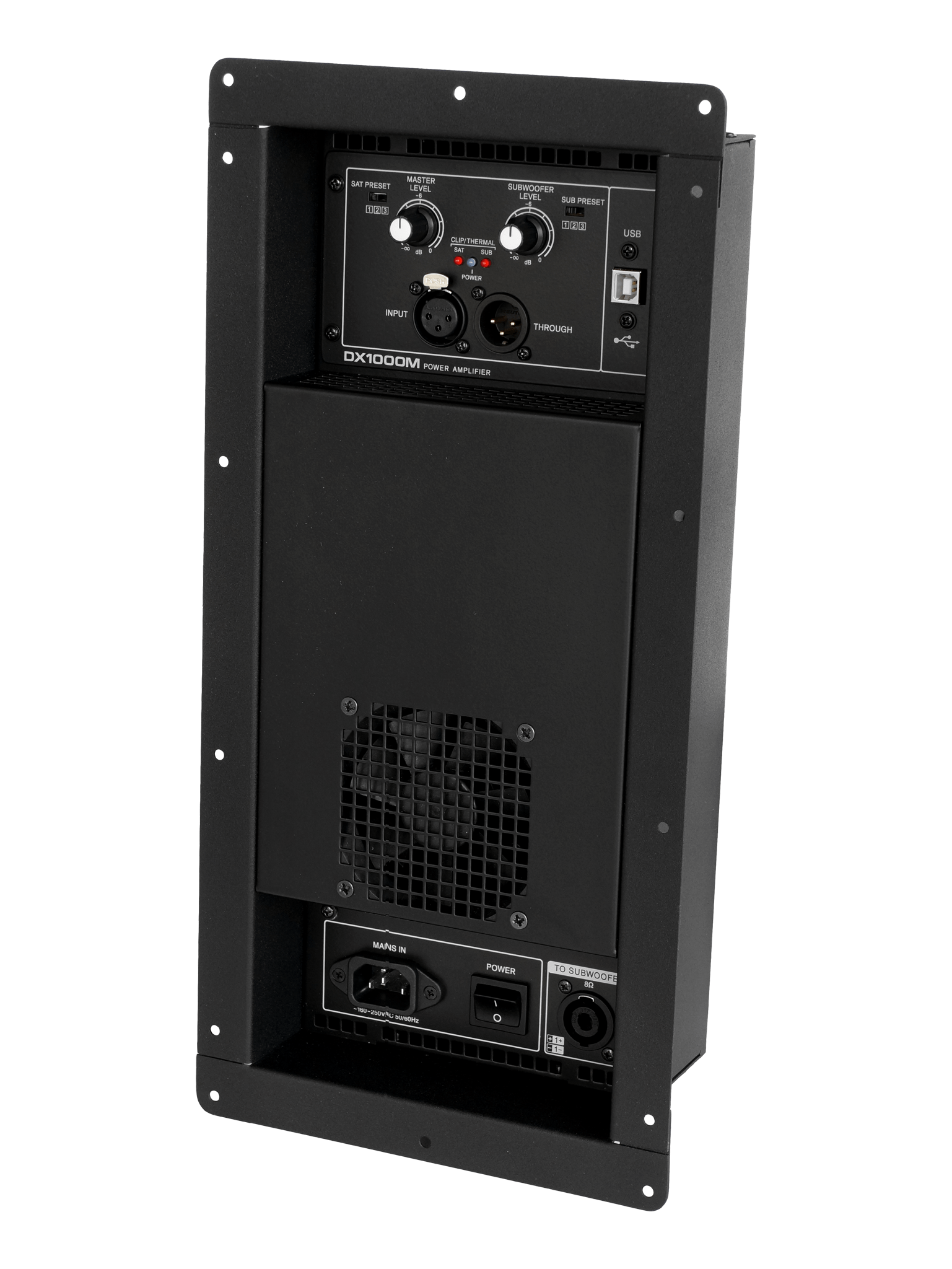

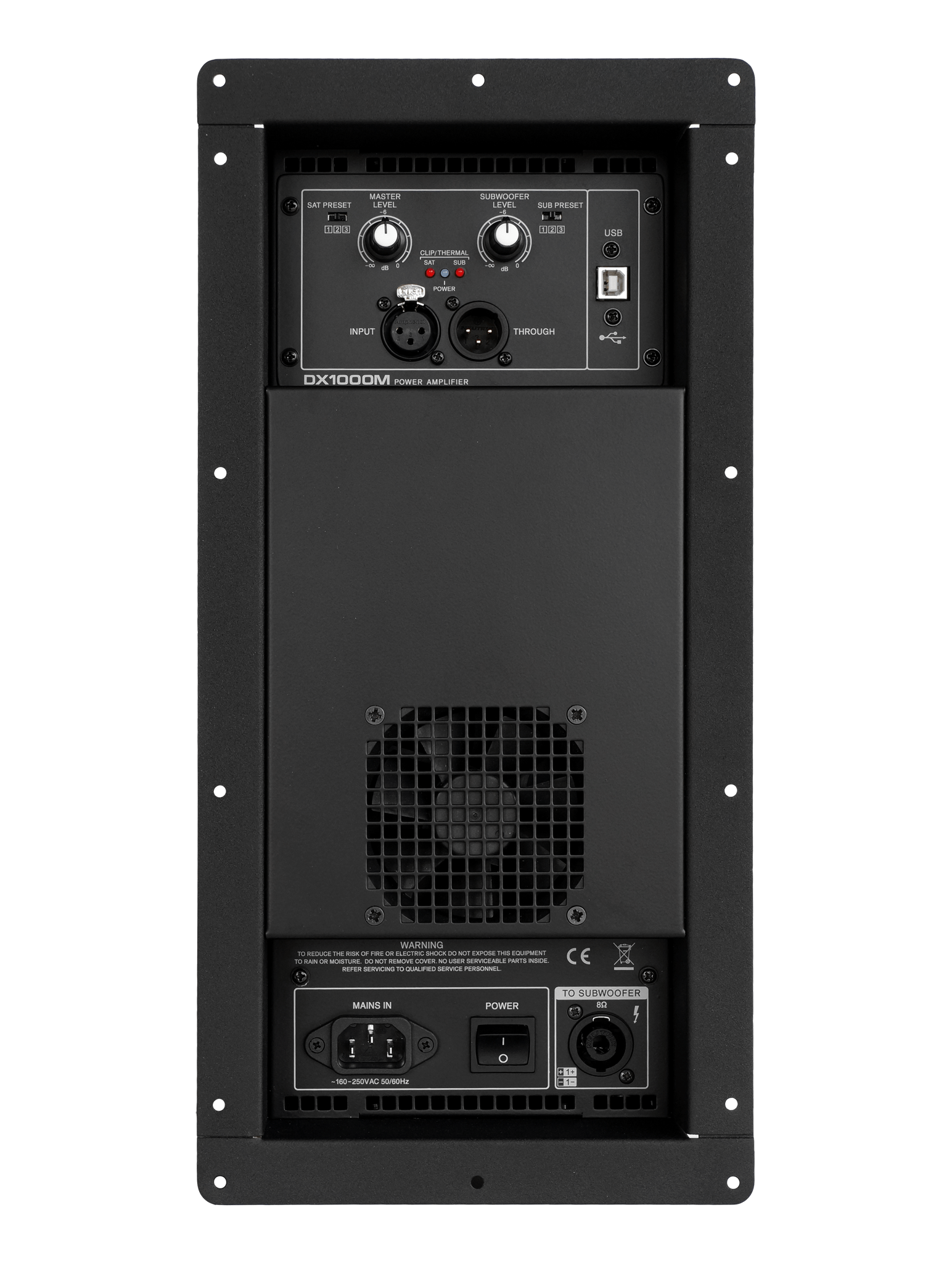

| MODEL | DX1000M DSP |
|---|---|
| Subwoofer Channel Power Rating*, 4Ω | 700 W |
| Subwoofer Channel Power Rating*, 8Ω | 380 W |
| Satellite Channel Power Rating*, 4Ω | – |
| Satellite Channel Power Rating*, 8Ω | 350 W |
| Subwoofer Channel Frequency Range** (0, - 0.5 dB) | 45 Hz - 125 Hz |
| Satellite Channel Frequency Range** (0, - 0.5 dB) | 125 Hz - 20 kHz |
| Total Harmonic Distortion*** | 0.05 % |
| Damping Factor ( 8Ω, 200 Hz ) | > 200 |
| Slew Rate | 20 V/uS |
| Signal-to-Noise Ratio | 98 dB |
| Sensitivity**** | 0.775 V |
| Power Requirements | ~230 V, 50/60 Hz |
| Weight (without PFC / with PFC) | 4 / 4.3 kg |
| Dimensions (W х H х D) | 198 х 408 х 104 mm |
* At mains voltage:
– ~230 V for amplifier without Power Factor Correction (PFC);
– ~160-280 V for amplifier with Power Factor Correction (PFC).
** Determined by the DSP settings.
*** In the operating frequency range of the corresponding channel.
**** Basic setting, can be changed by DSP engine
– ~230 V for amplifier without Power Factor Correction (PFC);
– ~160-280 V for amplifier with Power Factor Correction (PFC).
** Determined by the DSP settings.
*** In the operating frequency range of the corresponding channel.
**** Basic setting, can be changed by DSP engine
