Park Audio™
NX6118-P
Active subwoofer
with DSP engine
Application: PA systems for clubs, bars, restaurants, music bands, indoor and outdoor usage.
VERSIONS:
Other subwoofers:
- Maximum SPL 133 dB
- Frequency range 38 – 140 Hz
- 18”, 1200W woofer (B&C Speakers), voice coil 4”
- Acoustic design – bass reflex
- Cabinet material – birch plywood
- Cabinet coating — black water-polymer finishе
- Protective steel grid with powder coating
- Additional moisture protection — transpanent foam, glued to the inner surface of the grid
- Flange M20 for speaker stand
- 4 ergonomic handles

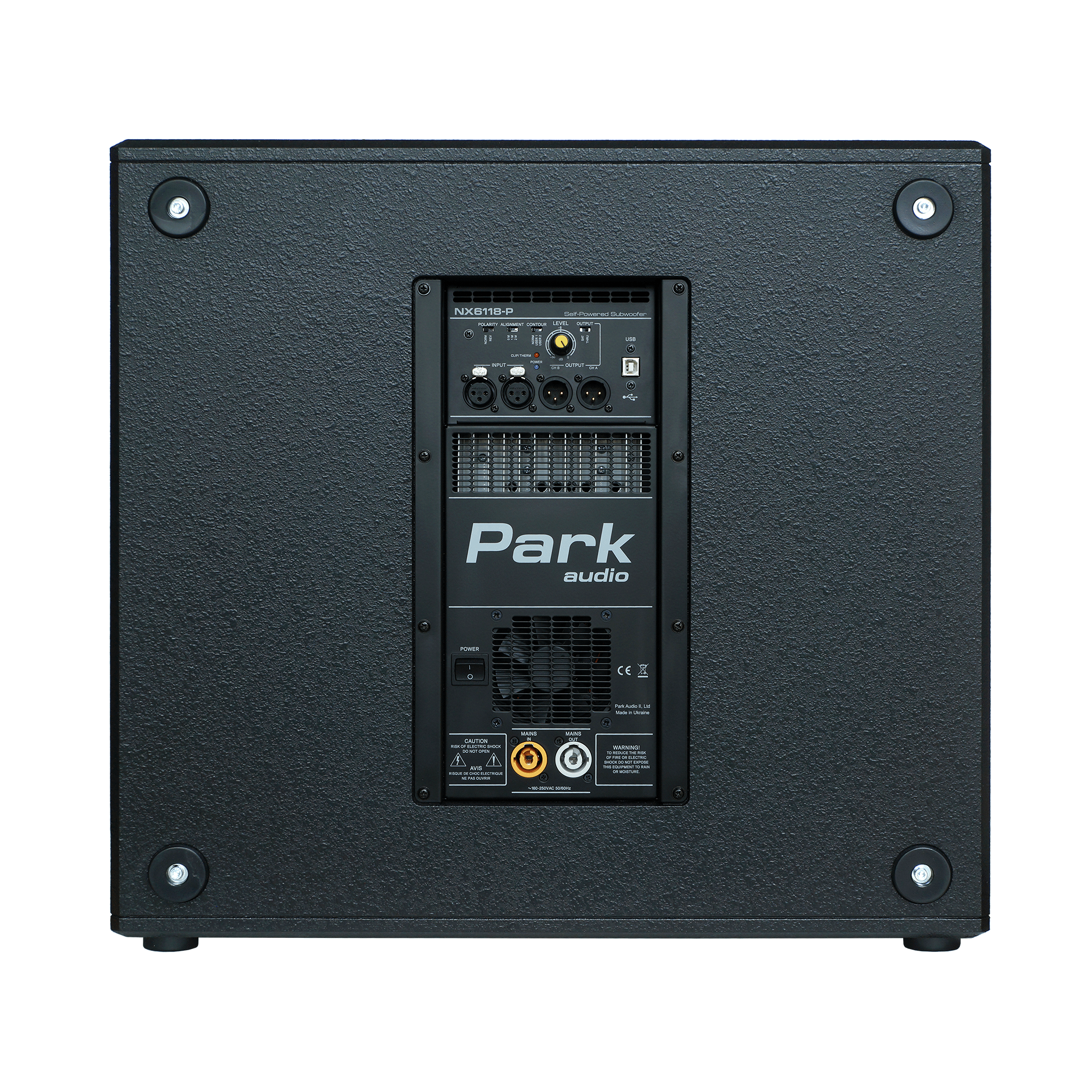

- Built-in D class amplifier (2000 W RMS), switching power supply with PFC
- DSP engine, acting as crossovers, EQ, time alignment, limiting and speakers overload protection
- Two line inputs and outputs – 2 х XLR
- Line output switch: THRU/SAT (THRU – parallel connection to input, SAT – send processed signal to line output)
- Input level control
- Polarity switch (Norm/Rev)
- Delay switch ( 0, 1, 2 meters)
- Preset switch (1 factory and 2 users)
- USB connections for DSP setting (software – Sigma studio from Analog device)
| MODEL | NX6118-P |
|---|---|
| Loudspeaker | |
| Nominal Power Handling (AES) | 1200 W |
| Continuous Power Handling | 2400 W |
| Frequency Range | 38 Hz - 140 Hz |
| Maximum Output SPl (half space) | 133 dB/1 m* |
| Weight | 39 kg |
| Dimensions (W х H х D) | 570 x 543 x 677 mm |
| Built-in Amplifier | |
| Power Rating (RMS) | 2000 W, class D |
| Sensitivity | 775 mV |
| Input Impedance | 10 kOhms |
| Signal-to-Noise Ratio | 98 dB (unweighted) |
| Input/Line Output | 2 х XLR / 2 х XLR |
| Cooling | forced** |
| Power Supply | ~160-250 V, 50/60 Hz |
| DSP engine | |
| Sampling Rate | 48 kHz |
| DAC / ADC | 24-bit |
| Internal Processing | 56-bit |
* For comparison purposes and in accordance with common industry practice, maximum SPL specifications are calculations based upon transducer sensitivity, amplifier output voltage and speaker impedance.
** With smoothly variable intensity. At a normal temperature and low output level the fan is OFF.
