Park Audio™
SA602i
Application:
LF support for the systems of background sound for use in the malls, exhibition halls, restaurants, etc.
Other installation loudspeakers:
- Compact size
- 2 x 6″ LF speakers(FaitalPRO)
- Convenient bracket for mounting to the wall
- 8 x М10 suspension points for mounting the loudspeaker
- Maximum SPL 127 dB SPL/1 m
- Frequency range 55 Hz – 300 Hz

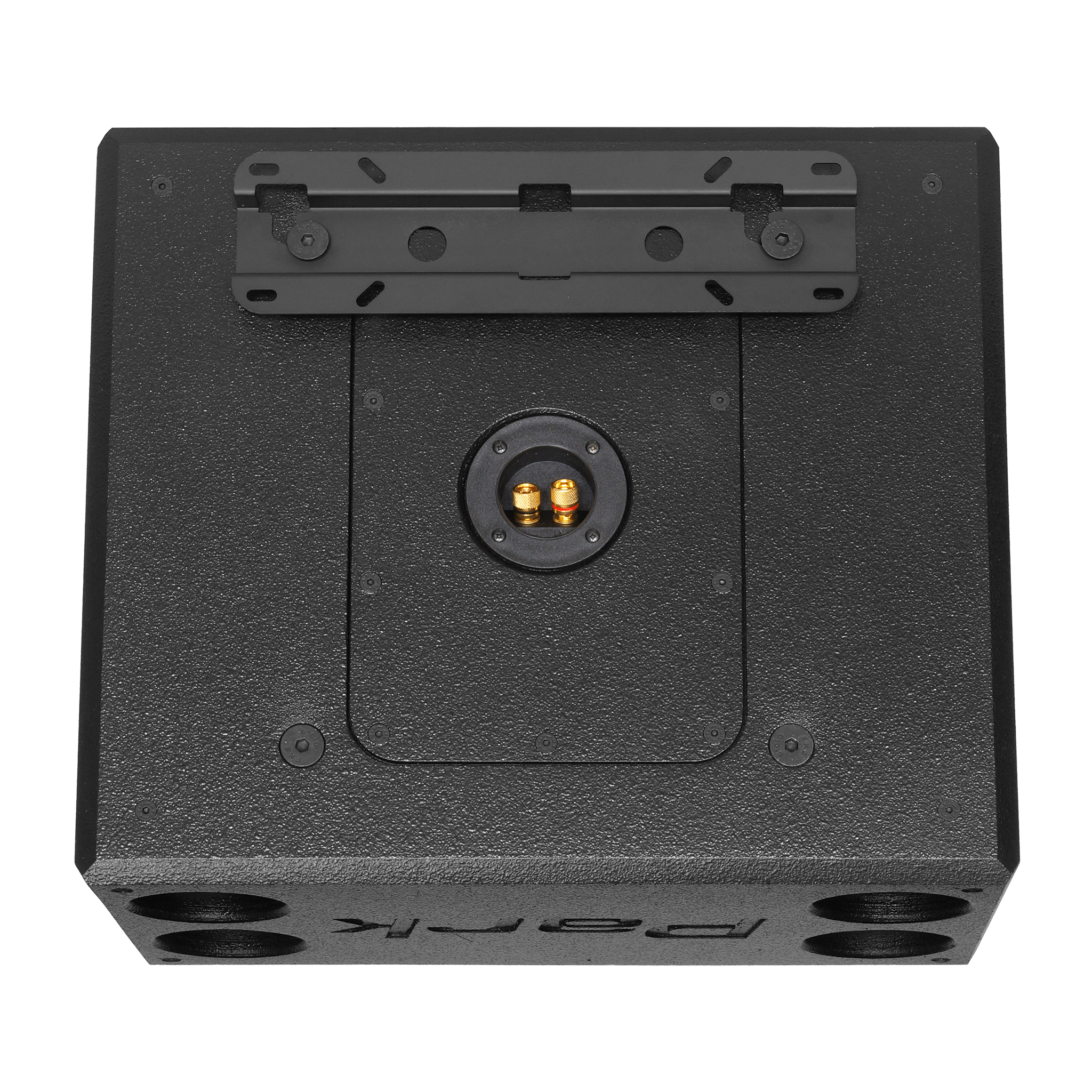

- Connection — 4-pins Euroblock plug on the rear panel
| MODEL | SA602i |
|---|---|
| Configuration | LF Loudspeaker |
| Transducers | 2 x 6"dia Full Range Speaker |
| Acoustic Design | Band-Pass |
| Power Handling (nominal) | 200 W |
| Power Handling (continuous) | 400 W |
| Nominal Impedance | 16 Ohms, 4 Ohms |
| Frequency Range | 55 Hz – 300 Hz |
| Sensitivity | 95 dB (1 W, 1 m) |
| Maximum Output SPL (continuous) | 121 dB (1 m) |
| Maximum Output SPL (peak) | 127 dB (1 m) |
| Weight | 9.5 kg |
| Dimensions:: | |
| – width | 425 mm |
| – height | 368 mm |
| – depth | 218 m |
| Connection | Screw terminals |
