Park Audio™

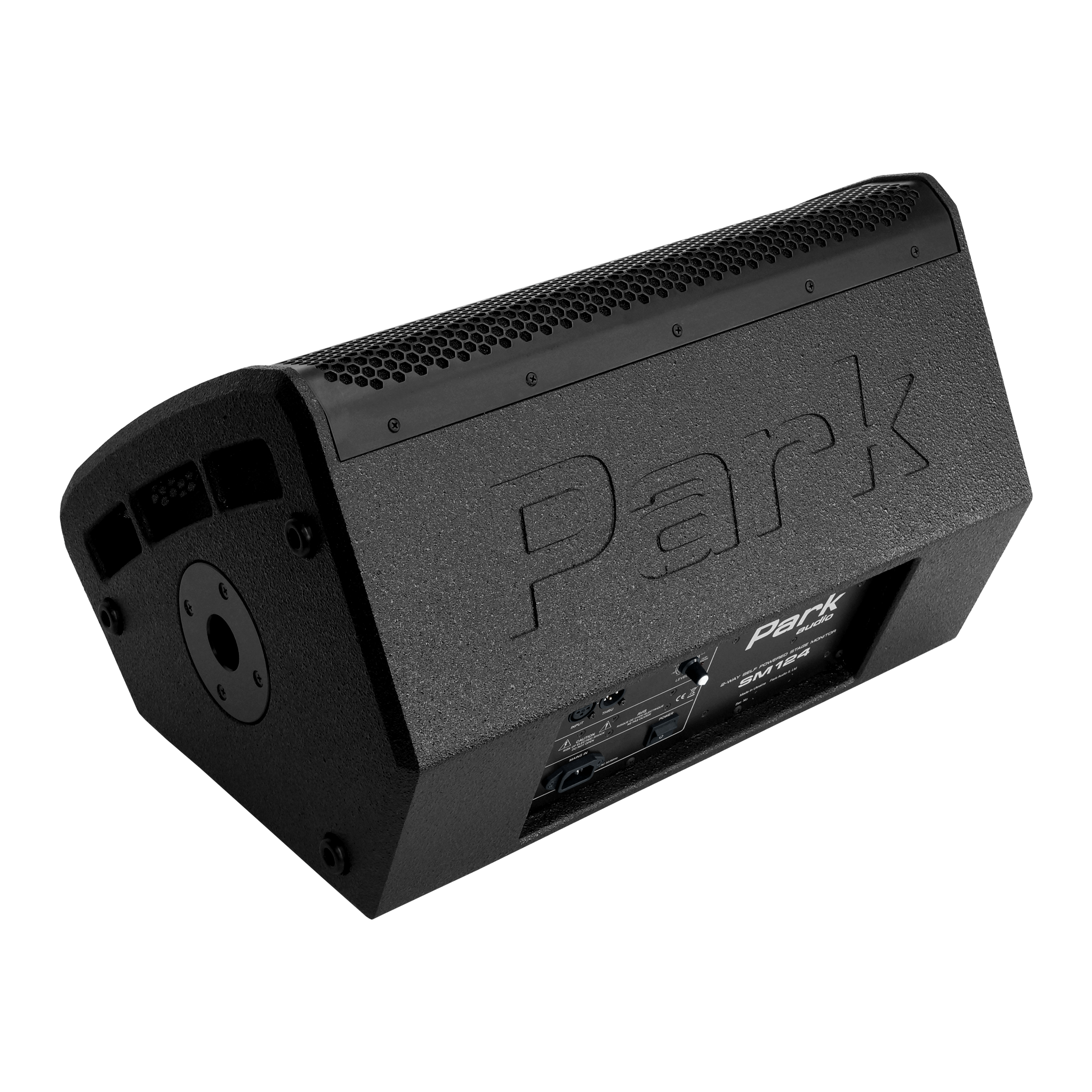

Stage Monitor SM124
Application:
Stage monitor PA systems, creation of additional sound field for the singer orientation at the concerts, satellite in two-way PA systems.Versions:
- passive 8 Ohms
- active
- Maximum SPL 123 dB
- Frequency range 65 Hz – 19 kHz
- 12”, 300 W LF driver (LAVOCE Italiana)
- 1” HF driver (B&C SPEAKERS)
- Coverage 90°H x 60°V
- Acoustic design – bass reflex
- Cabinet material – birch plywood
- Cabinet coating – black water-polymer finish
- Protective steel grid with powder coating
- Additional moisture protection – transpanent foam, glued to the inner surface of the grid
- Can be used as a satellite in subwoofer-satellite PA systems
- Ergonomic handles for convenient transportation
- Flange for speaker stand
- Power rating – 350 W RMS (D class)
- Switching power supply
- Natural cooling system
- Detachable power cord

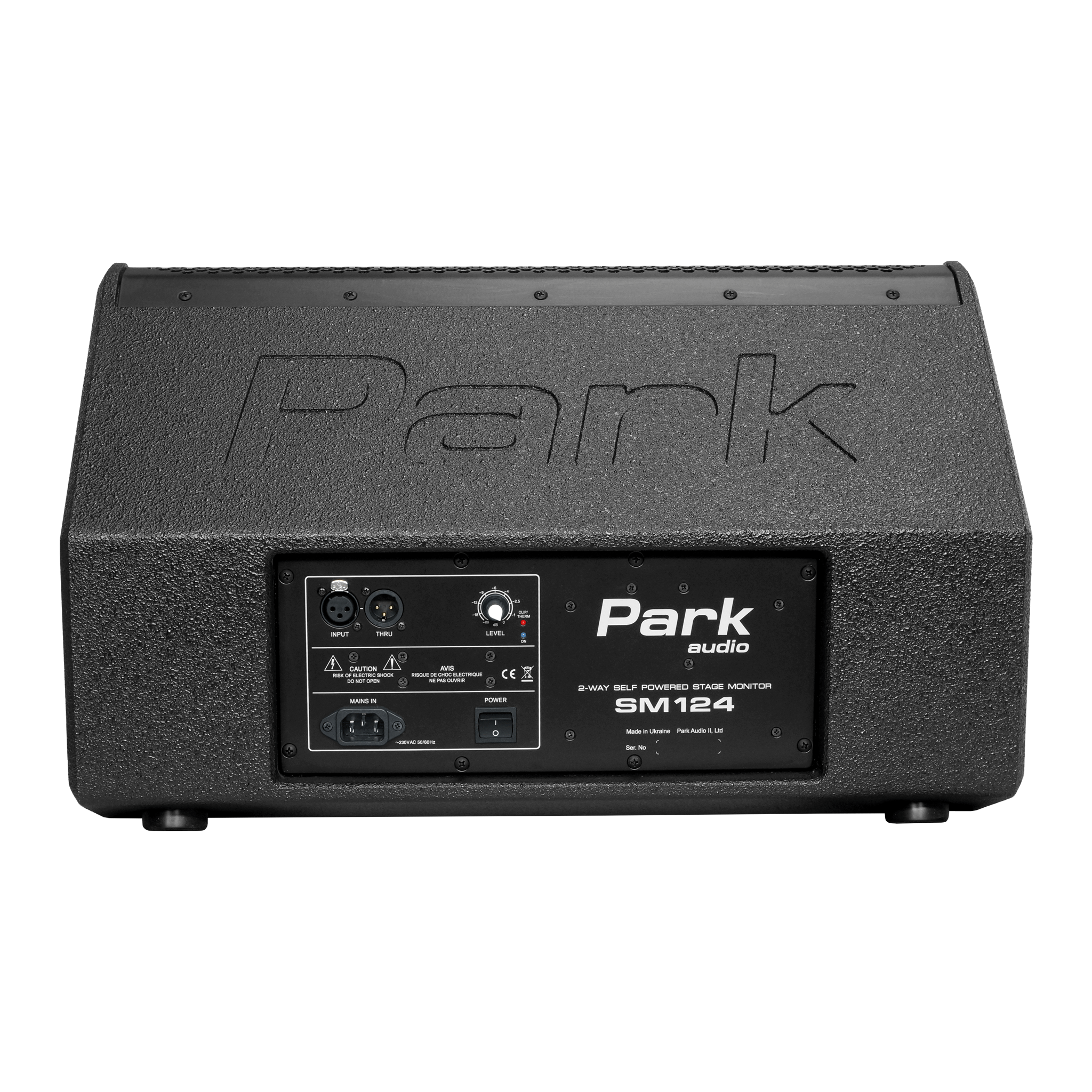

- Line input / Line output (THROUGH) — XLR / XLR
- Input level control
- Analog input circuit, acting as crossover, EQ, limiting and speaker overload protection
- Amplifier overload, short-circuit, thermal, high frequency and DC output protection
| MODEL | SM124-P |
|---|---|
| Loudspeaker | |
| Configuration | Active two-way stage monitor |
| Acoustic design | Bass reflex |
| LF driver | 12"dia LAVOCE ITALIANA, voice coil 2,5" |
| HF driver | 1"dia B&C SPEAKERS, voice coil 1" |
| Power Handling (nominal) * | 300 W |
| Power Handling (continuous) ** | 600 W |
| Frequency Range | 65 Hz – 19 kHz |
| Coverage | 90°H x 60°V |
| Maximum Output SPL (full space) *** | 123 dB / 1m |
| Weight | 17 kg |
| Dimensions: | |
| – widht | 524 mm |
| – height | 314 mm |
| – depth | 422 mm |
| Built-in amplifier | |
| Power Rating (RMS) | 350 W, D class |
| Sensitivity | 775 mV |
| Input Impedance | 10 kOhms |
| Signal-to-Noise Ratio | 98 dB (unweighted) |
| Input / Line Output | XLR / XLR |
| Cooling System | Natural |
| Power Requirements | ~220 V, 50/60 Hz |
* Maximum output SPL indicated. For comparison purposes and in accordance with common industry practice, maximum SPL specifications are calculations based upon transducer sensitivity, amplifier output voltage and speaker impedance.
