Park Audio™
ND115
Subwoofer
Application: PA systems for clubs, bars, restaurants, music bands, indoor and outdoor usage
Versions:
- ND115-4 -passive 4 Ohms
- ND115-8 — passive 8 Ohms
- ND115-P — active with DSP
VERSIONS:
Other subwoofers:
- Maximum SPL 128.5 dB
- Frequency range 43 – 200 Hz
- 15”, 500 W woofer (B&C SPEAKERS) with 3″ voice coil
- Acoustic design – rectangular cabinet, bass reflex
- Cabinet material – birch plywood
- Black water-polymer finish
- Protective steel grid with powder coating
- Transpanent foam, glued to the inner surface of the grid

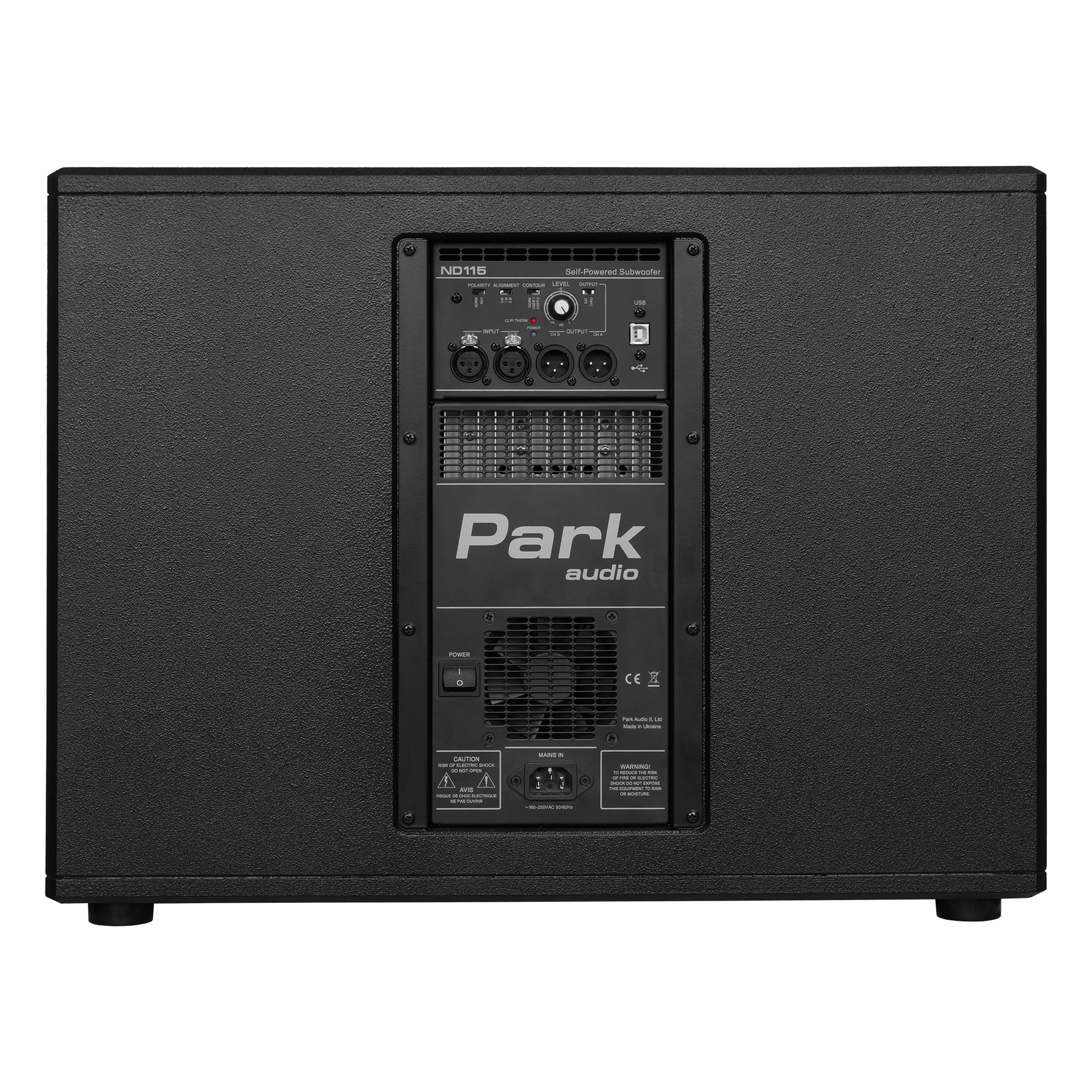

- Built-in D class amplifier (1000 W RMS), switching power supply with PFC
- DSP engine, acting as crossovers, EQ, time alignment, limiting and speakers overload protection
- Two line inputs and outputs – 2 х XLR
- Line output switch: THRU/SAT (THRU – parallel connection to input, SAT – send processed signal to line output)
- Input level control
- Polarity switch (Norm/Rev)
- Delay switch ( 0, 1, 2 meters )
- Preset switch (1 factory and 2 user)
- USB connections for DSP setting (software – Sigma studio from Analog device)
| MODEL | ND115-P |
|---|---|
| Loudspeaker | |
| Nominal Power Handling | 500 W |
| Сontinuous Power Handling | 1000 W |
| Frequency Range | 43Hz - 140 Hz |
| Maximum Output SPL (half space) | 128.5 dB/1m* |
| Weight | 27 kg |
| Dimensions: (W х H х D) | 580 x 445 x 510 mm |
| Built-in Amplifier with DSP engine | |
| Power Rating (RMS) | 1000 W, class D |
| Sensitivity | 775 mV |
| Input Impedance | 10 kOhms |
| Signal-to-Noise Ratio | 98 dB (unweighted) |
| Input / Line Output | 2 х XLR / 2 х XLR |
| Cooling System | forced ** |
| Power Requirements | ~220/230 V, 50/60 Hz |
| Supply Voltage Range | ~160 - 280 V, 50/60 Hz |
| DSP engine | |
| Sampling Rate | 48 kHz |
| DAC/ADC | 24-bit |
| Internal Processing | 56-bit |
* For comparison purposes and in accordance with common industry practice, maximum SPL specifications are calculations based upon transducer sensitivity, amplifier output voltage and speaker impedance.
** With smoothly variable intensity. At a normal temperature and low output level the fan is OFF.
