Park Audio™

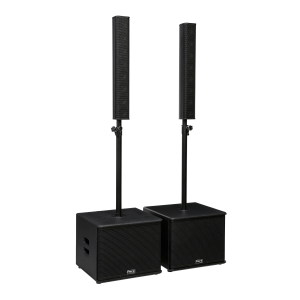

SPIKE 4818.04 Duo
Application: PA system for multi-purpose spaces, houses of worship, auditoriums, clubs, restaurants, karaoke bars.
Kit Contents:
- Compact line source speaker – vertical line array VA408.04 – 4 pcs.
- Active subwoofer PZ118-P.04 – 2 pcs.
Other PA systems:
- Line source loudspeaker — sound column composed of 8 x 4″ full range speakers
- Maximum Output SPL 105 dB SPL / 12 m
- PA system frequency range 36 Hz – 17 kHz
- Coverage 140°H x 15°V (array effect)
- Active subwoofer with 18” loudspeaker with ferrite magnet (B&C SPEAKERS)
- Integrated into subwoofer amplifier 2000 + 1000 W RMS with DSP engine for FIR settings of FIR noise transmission characteristics
- LСD display for information output and system setup (setting)
- Built-in noise generator for live kit setting
- System menu for setting of звукопередачи characteristics (level, EQ, separate components delay and general system delay)
- Intuitive navigation through the system menu by means of encoder
- Ability to save 10 user presets
- Quick assembly kit system
| MODEL | SPIKE 4818.04 Duo |
|---|---|
| VA408.04 Loudspeaker | |
| Configuration | Line source loudspeaker - sound column |
| Transducer | 8 x 4" dia FaitalPRO full range speaker |
| Acoustic Design | Sealed box |
| Cabinet material, coating | Aluminium / steel, powder paint (different colours available) |
| Power Handling (nominal / cont.): | 240 / 480 W |
| Impedance | 8 Ohms |
| Frequency Response * | 140 Hz - 17 kHz |
| Sensitivity | 99 dB |
| MaximuSensitivitym Output SPL ** | 105 dB / 12 m |
| Coverage: | |
| – horizontal | 140° |
| – vertical | 15° (array effect) |
| Weight: | 8.8 kg |
| Dimensions: *** | |
| – width | 124 mm |
| – hight | 855 mm |
| – depth | 114 mm |
| Subwoofer PZ118-P.04 | |
| Configuration | Active subwoofer |
| Transducers | 18" dia B&C SPEAKERS, voice coil 4" |
| Acoustic Design | Rectangular cabinet, bass reflex |
| Cabinet material, coating | Birch plywood, black water-polymer paint finish |
| Grid material, coating | Perforated steel, black powder paint |
| Power Handling (nominal) | 700 W |
| Power Handling (continuous) | 1400 W |
| Frequency Response * | 36 - 180 Hz |
| Sensivity | 96.5 dB |
| Maximum Output SPL (half space) ** | 133 dB / 1 m |
| Weight | 43 kg |
| Dimensions: *** | |
| – width | 570 mm |
| – hight | 543 mm |
| – depth | 667 mm |
| Built-in amplifier (in PZ118-P.04) with DSP engine | |
| Power Rating (RMS) | |
| – subwoofer channel | 2000 W, D class |
| – satellite channel | 1000 W, D class |
| Sensitivity | 775 mV |
| Input Impedance | 10 kOhms |
| Signal-to-Noise Ratio | 98 dB (unweighted) |
| Input/Line Output | XLR / XLR |
| Cooling System | forced**** |
| Power Requirements | ~160-280 V, 50 / 60 Hz |
| DSP engine | |
| Sampling Rate | 48 kHz |
| DAC/ADC | 24-bit |
| Internal Processing | 56-bit |
* VA408 + PZ118-P.04 Frequency range: 43 Hz – 17 kHz. ** For comparison purposes and in accordance with common industry practice, maximum SPL specifications are calculations based upon transducer sensitivity, amplifier output voltage and speaker impedance *** The total kit height 2170 mm. **** With smoothly variable intensity. At a normal temperature and low output level the fan is OFF..
