Park Audio™
SPIKE 4815 Duo
Application
Well-suited for indoor and outdoor usage: multi-purpose spaces, bands, restaurants, churches, malls and gymnasiums. Usage in difficult acoustic conditions (long and low halls).
Kit contents:
- VA408 Sound Column — 4pcs.
- ND115-P Active Subwoofer — 2pcs.

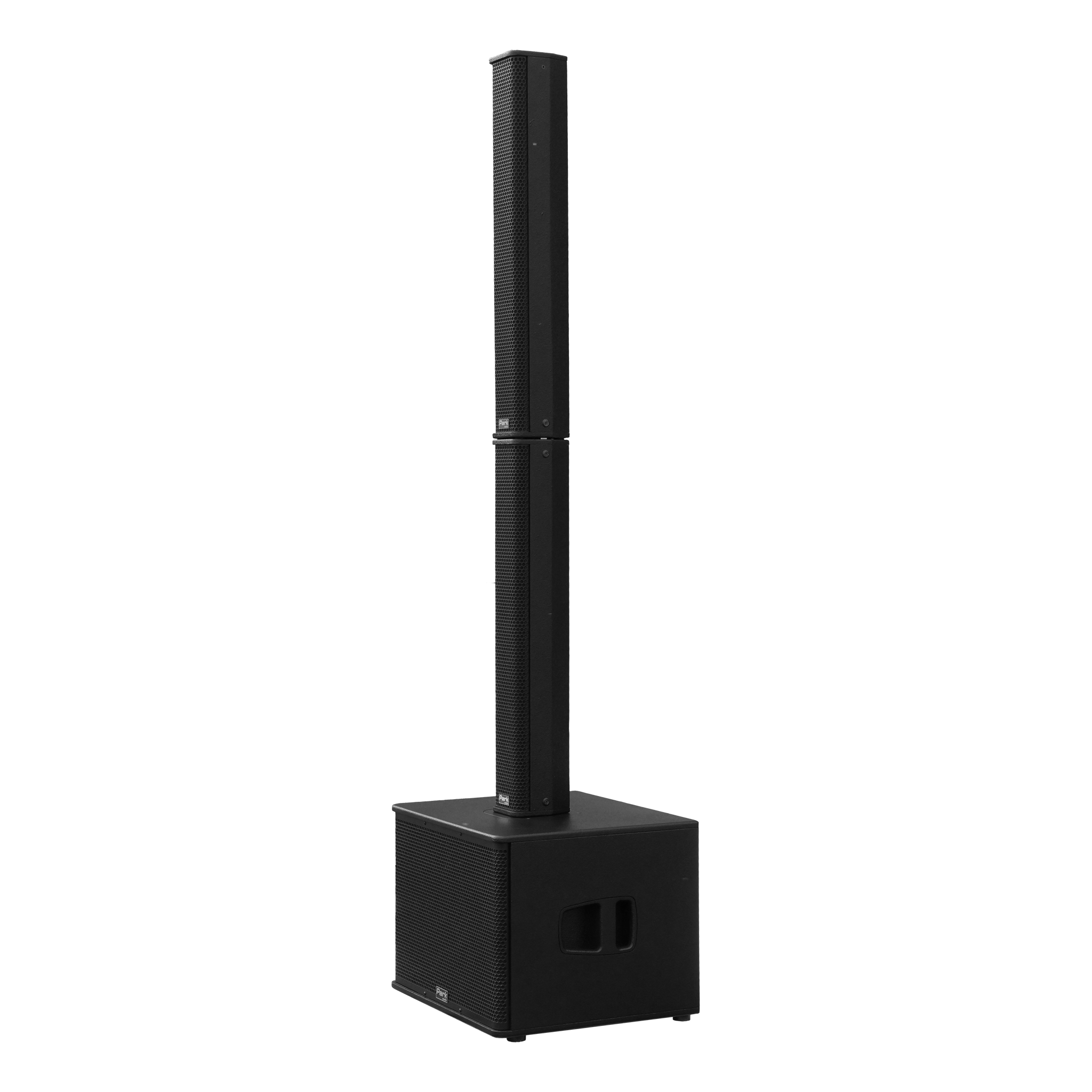

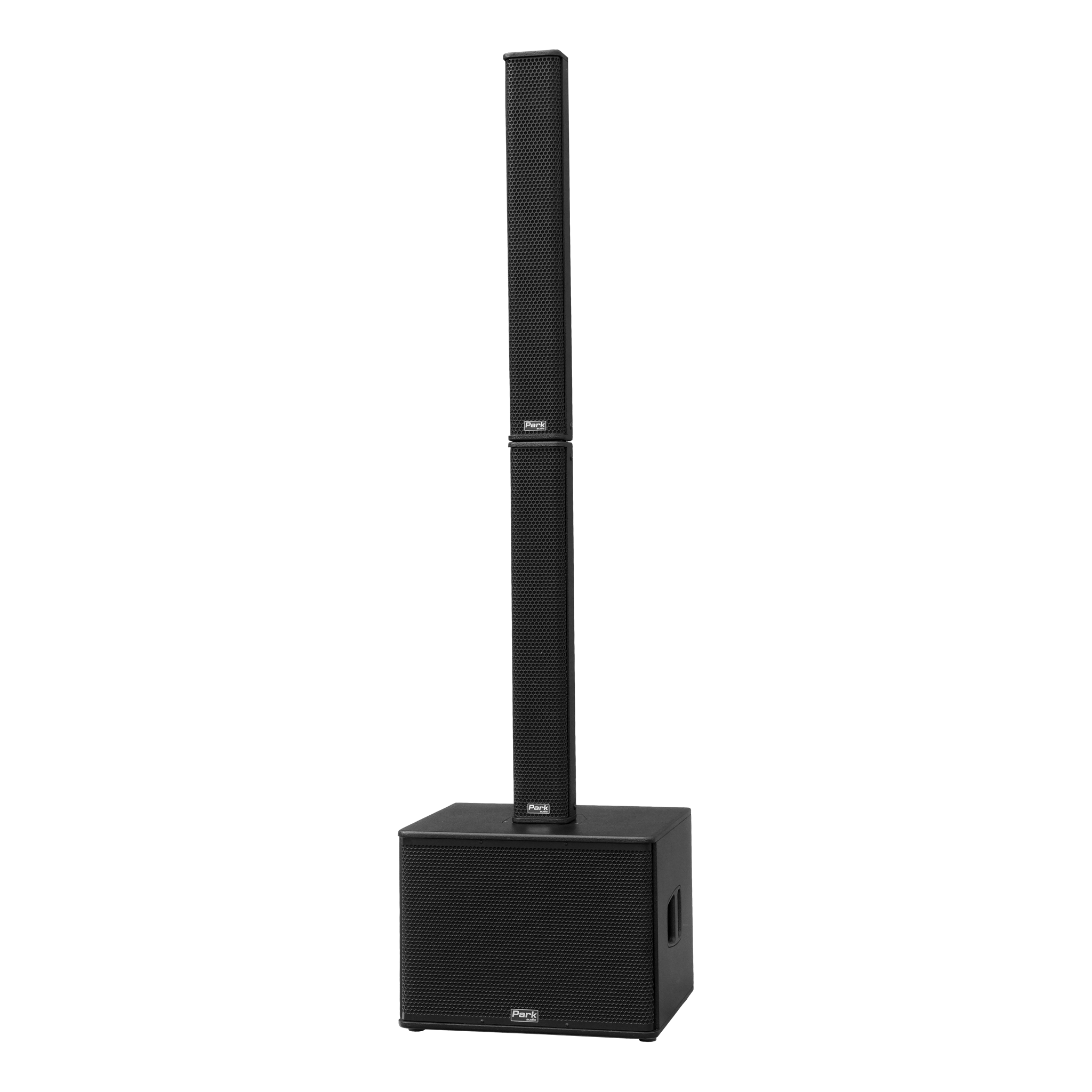

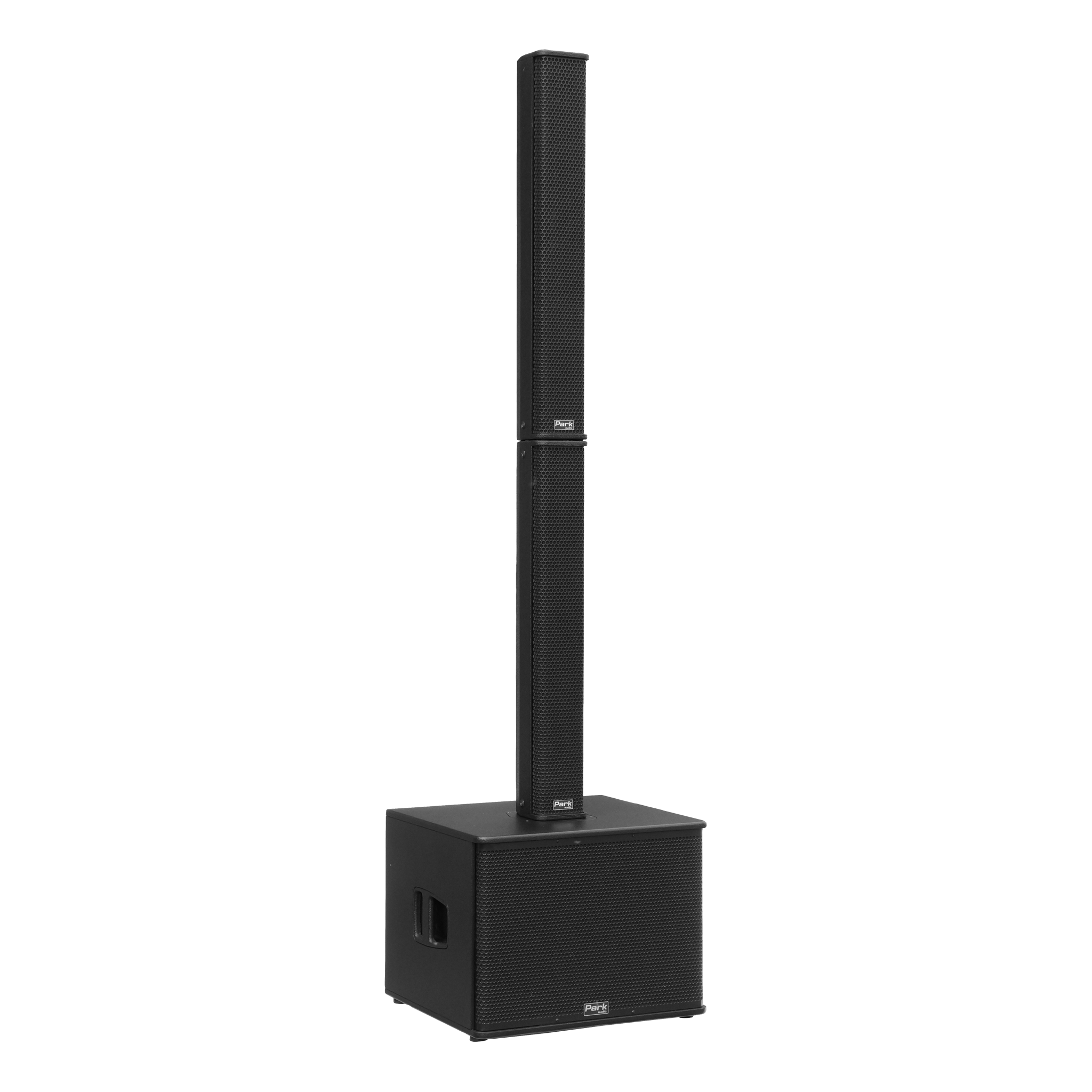

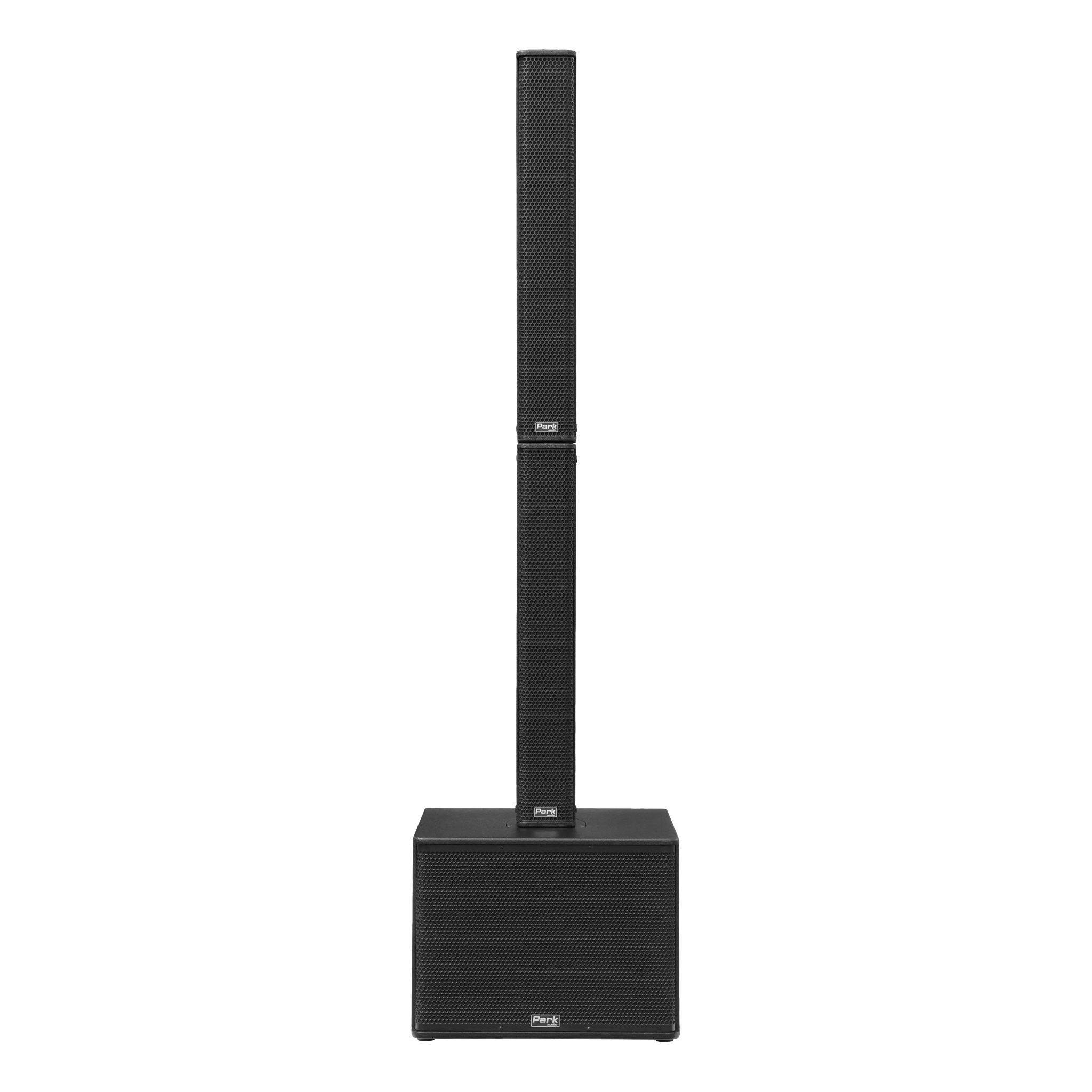

Active PA system:
- Line source loudspeaker — sound column composed of 8 x 4” full range speakers.
- The active subwoofer with 15” loudspeaker (neodymium magnet)
- Integrated in subwoofer amplifier 2 х1000W RMS with powerful DSP engine
- Three preset equalization settings
- Frequency range 43 Hz — 17 kHz
- Coverage 130°H x 15°V (array effect)
- Maximum SPL 108dB SPL/12m
- Connecting sound columns without visible wires
| MODEL | SPIKE 4815 Duo |
|---|---|

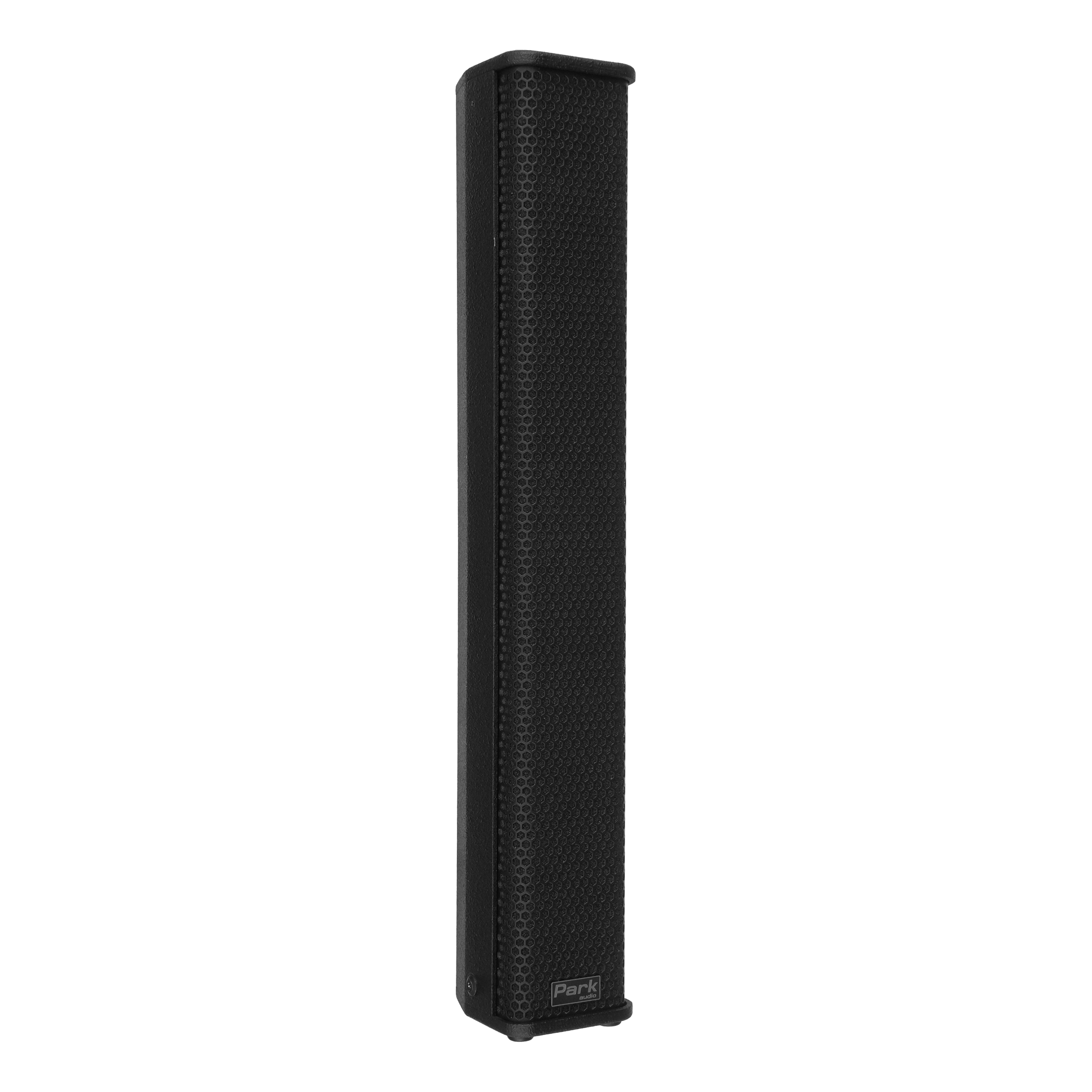

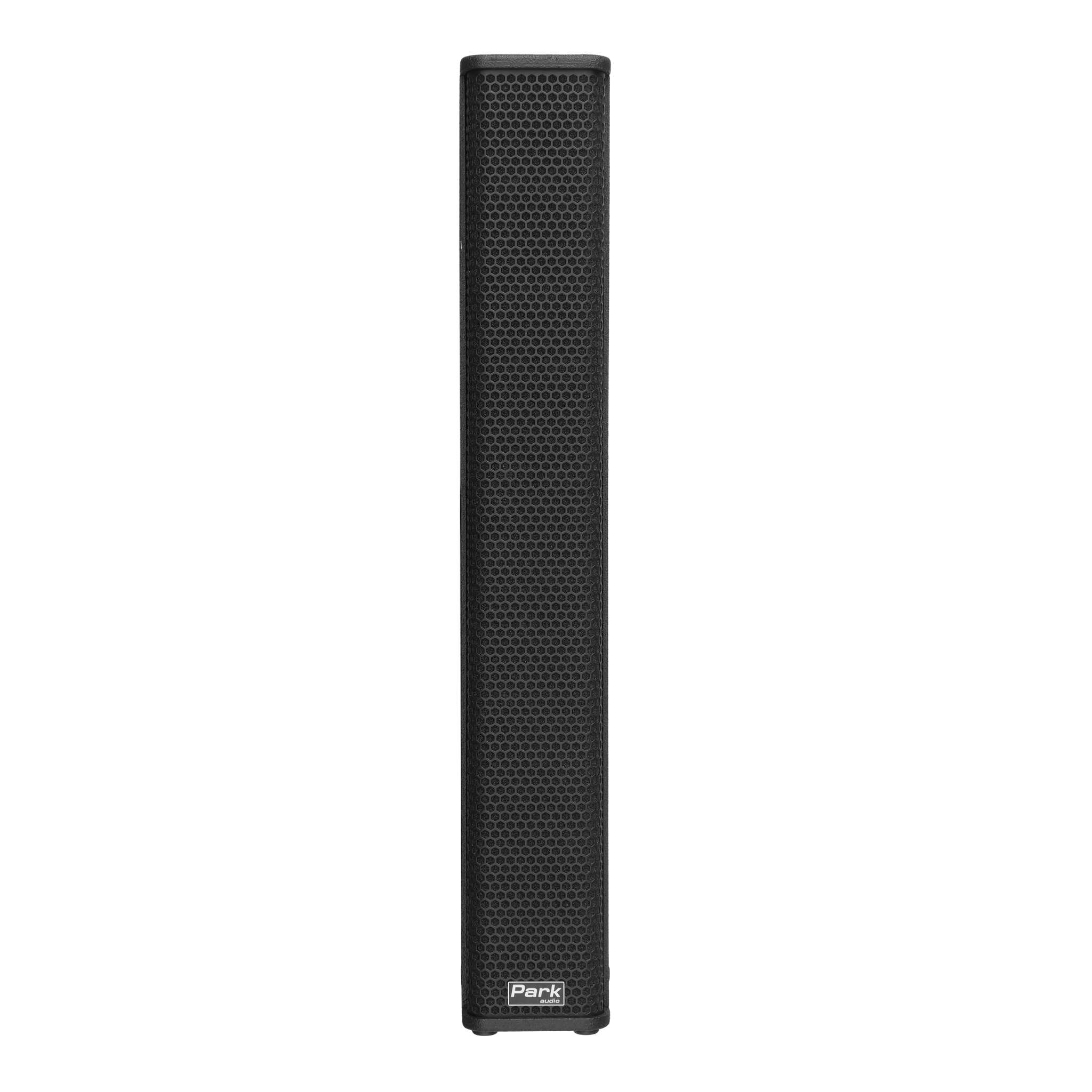

| VA408 Speaker | |
| Configuration | Line source loudspeaker - sound column |
| Transducer | 8 x 4" dia FaitalPRO full range speaker |
| Acoustic Design | Trapezoid cabinet, sealed box |
| Power Handling (nominal/cont.) | 240 / 480 W |
| Impedance | 8 Ohms |
| Frequency Response* | 140 Hz - 17 kHz |
| Axial Sensitivity | 99 dB |
| Maximum Output SPL** | 105 dB / 12 m |
| Coverage: | |
| – horizontal | 130° |
| – vertical | 15° (array effect) |
| Weight | 8.3 kg |
| Dimensions: *** | |
| – width | 137 mm |
| – height | 860 mm |
| – depth | 151 mm |
| ND115-P Subwoofer | |
| Configuration | Powered Subwoofer |
| LF Driver | 15" dia B&C SPEAKERS, voice coil 3" |
| Acoustic design | Rectangular cabinet, bass reflex |
| Power Handling (nominal) | 500 W |
| Power Handling (continuous) | 1000 W |
| Frequency Response* | 43 - 200 Hz |
| Sensitivity | 95 dB |
| Maximum Output (half space)** | 128.5 dB / 1m |
| Weight | 27 kg |
| Dimensions: *** | 577 x 445 x 520 mm |
| – width | 577 mm |
| – height | 445 mm |
| – depth | 520 mm |

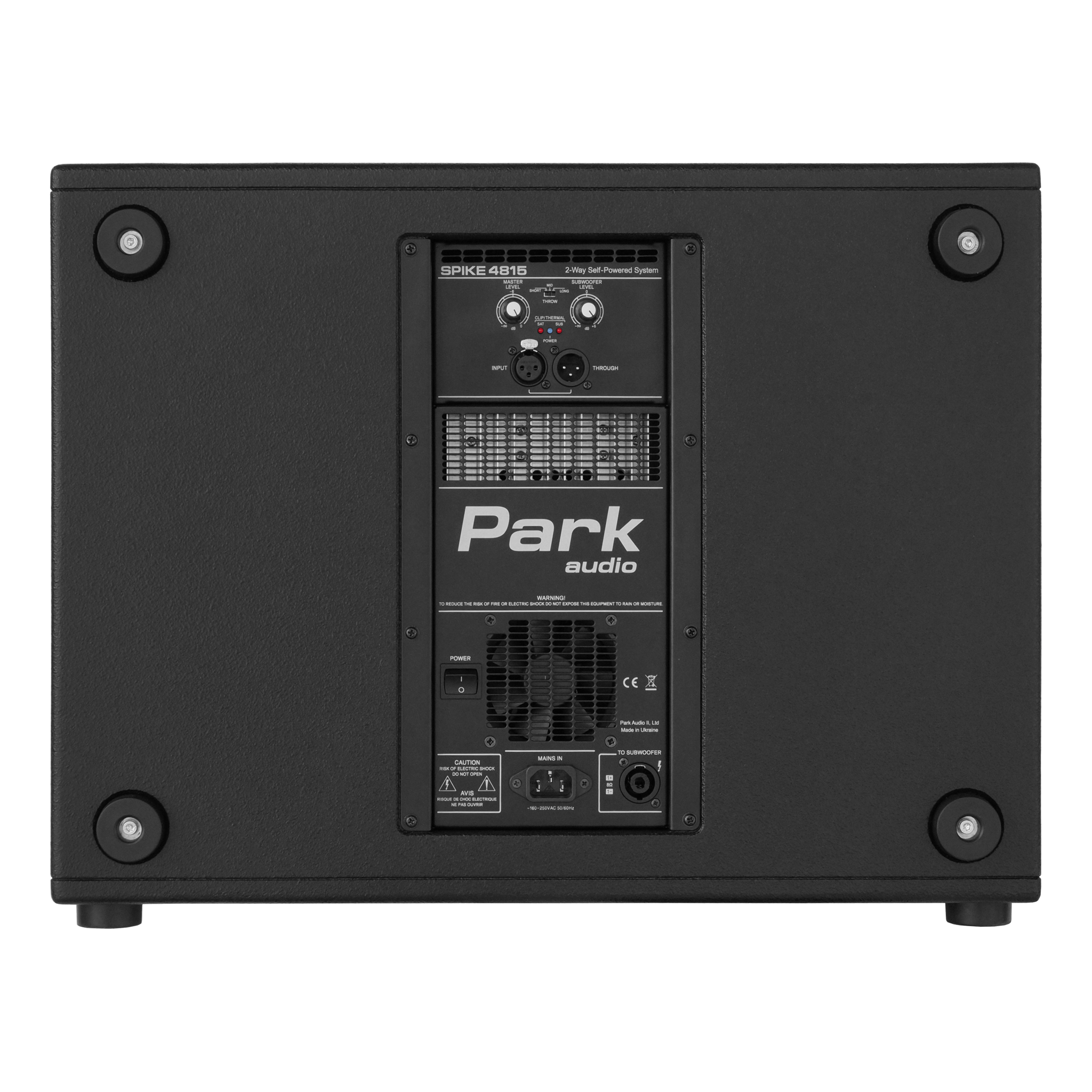

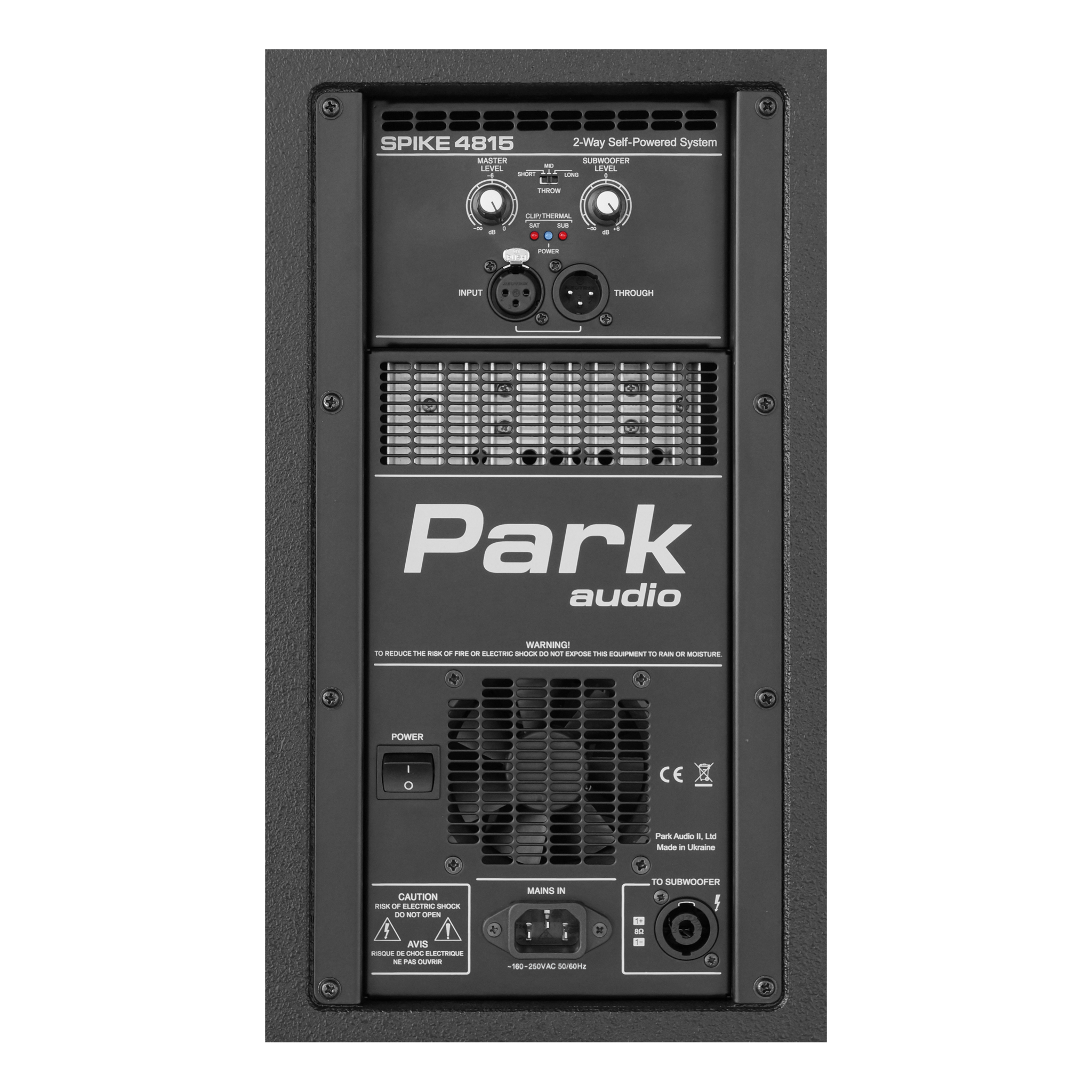

| Built-in Amplifier (In ND115-P) | |
| Power Rating (RMS) | 2 х 1000 W, class D |
| Sensitivity | 775 mV |
| Impedance | 10 kOhms |
| Signal-to-Noise Ratio | 98 dB (unweighted) |
| Input/Line Output | XLR / XLR |
| Cooling System | forced **** |
| Power Requirements | ~160-280 V, 50 / 60 Hz |
| DSP engine | |
| Sampling rate | 48 kHz |
| DAC/ADC | 24-bit |
| Internal Processing | 56-bit |
* VA408 + ND115-P Frequency response: 43Hz — 17kHz.
** For comparison purposes and in accordance with common industry practice, maximum SPL specifications are calculations based upon transducer sensitivity, amplifier output voltage and speaker impedance.
*** Высота комплекта в собранном состоянии 2170мм.
**** With smoothly variable intensity. At a normal temperature and low output level the fan is OFF.
