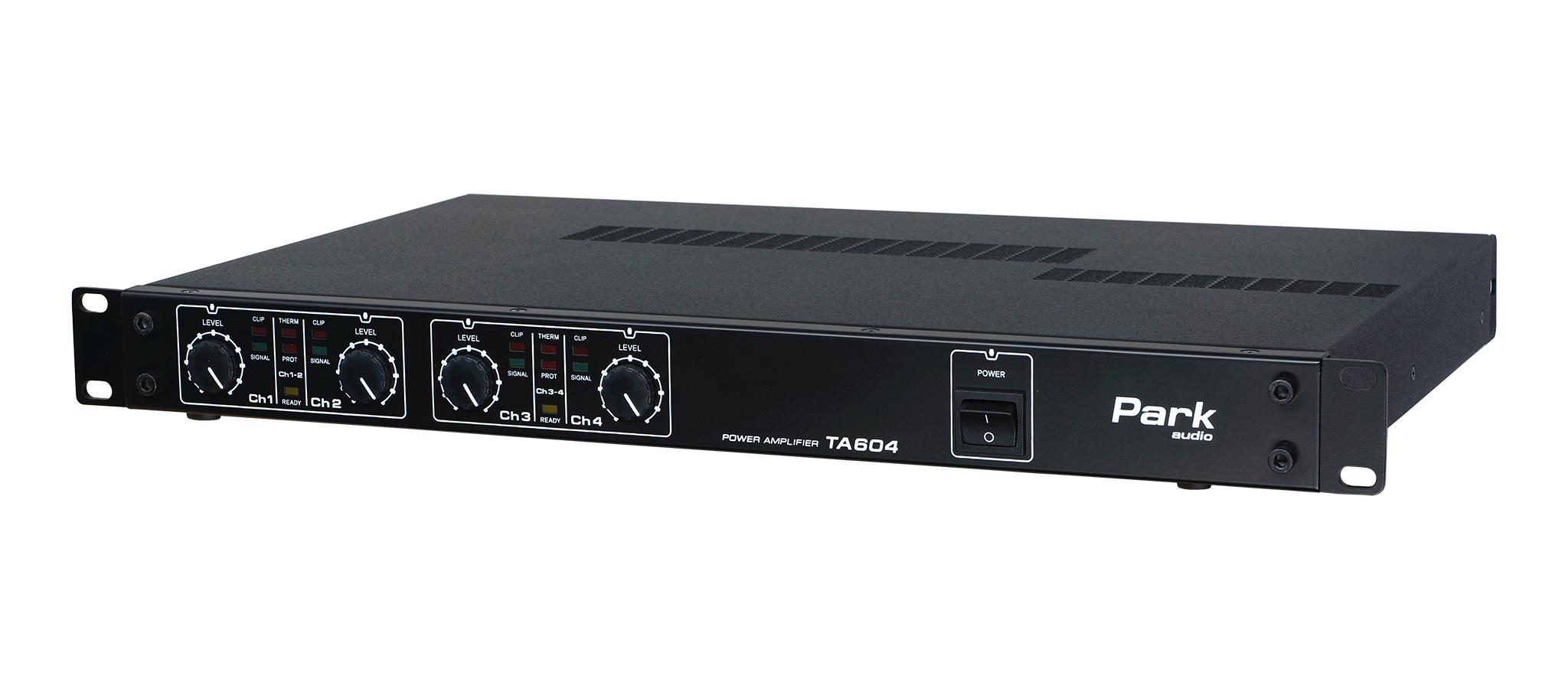

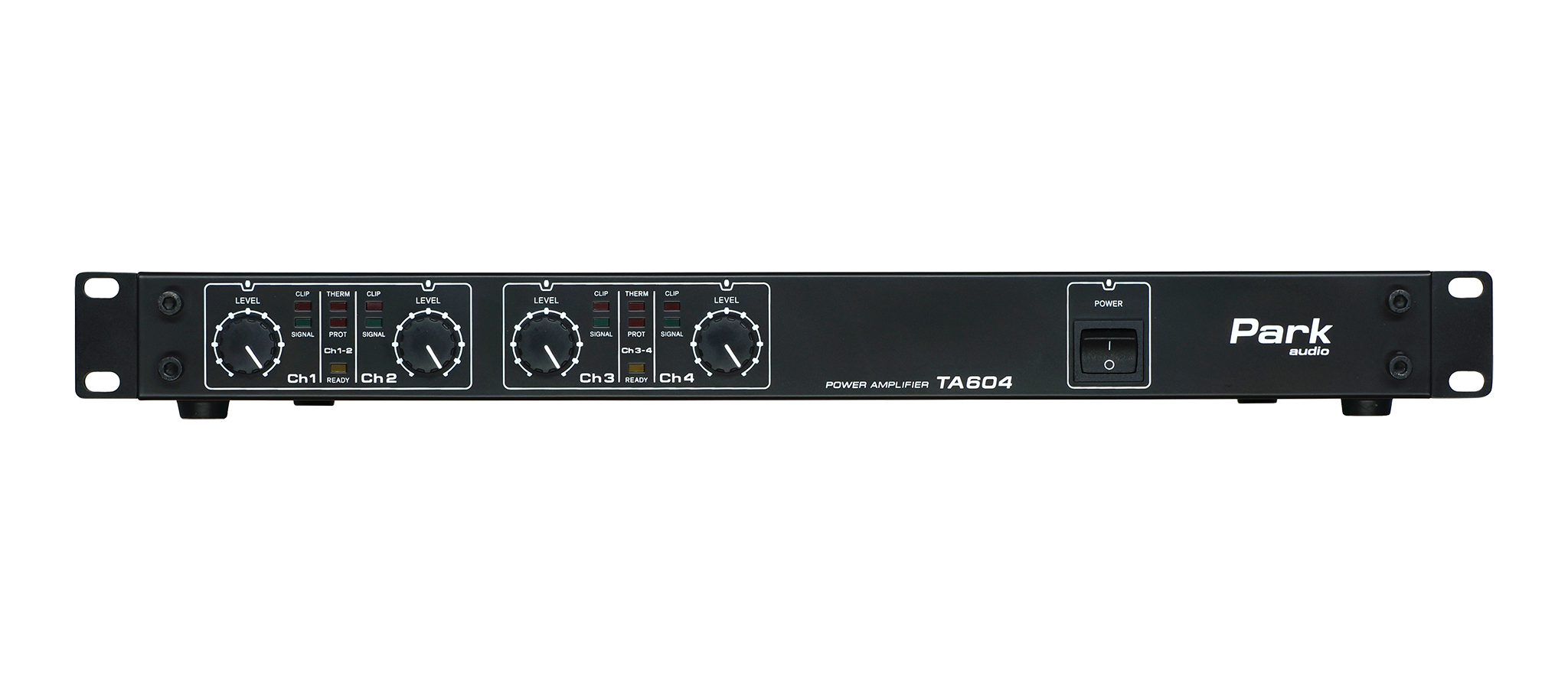

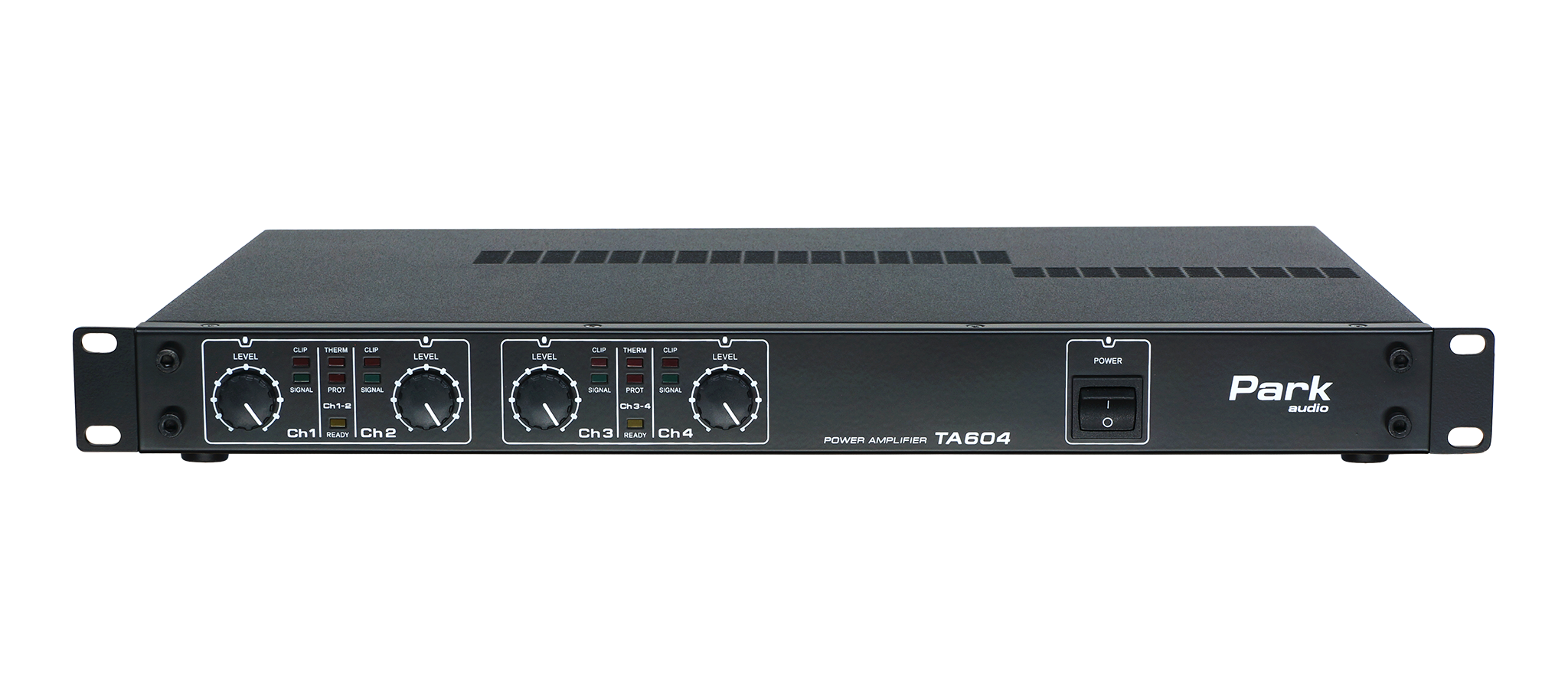

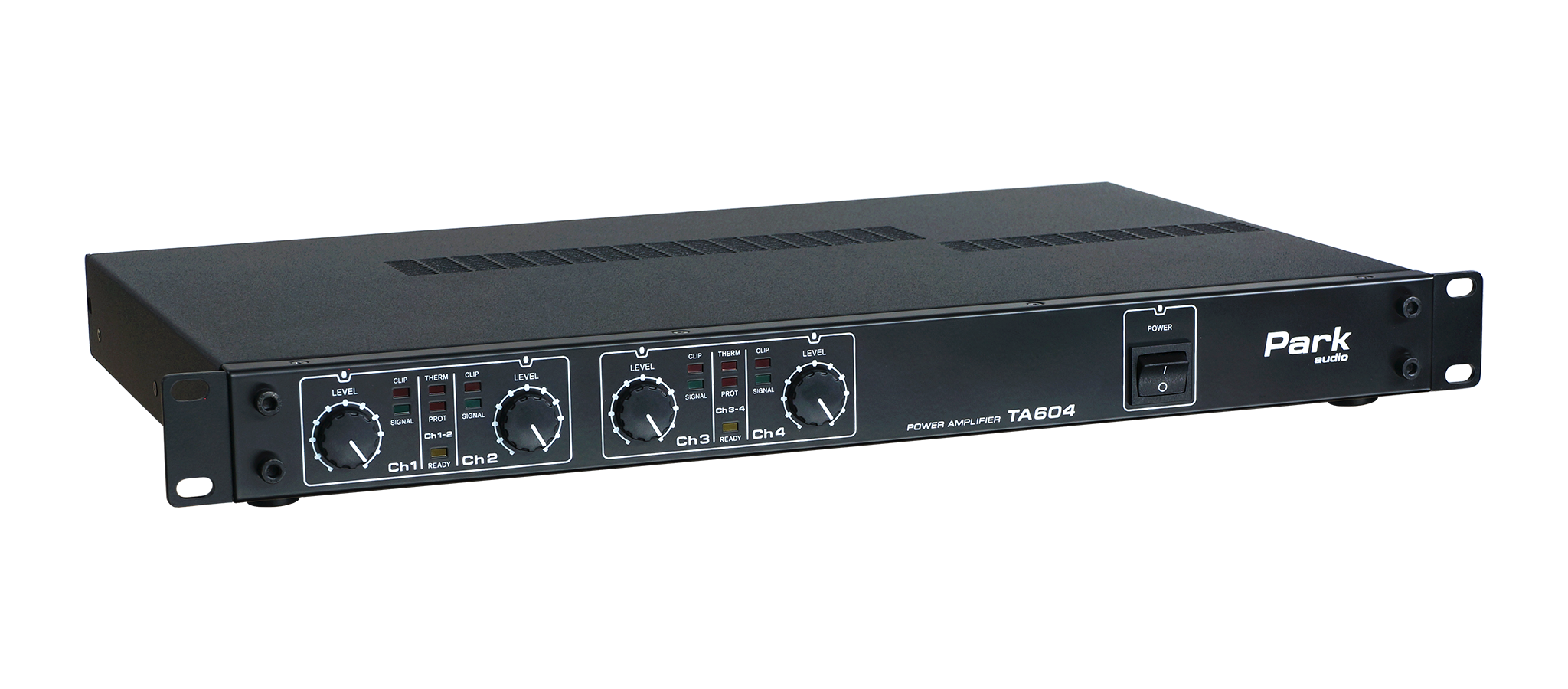

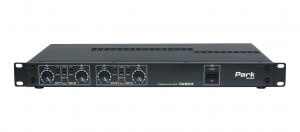

TA604D MkII Installation Amplifier

Amplifier with built-in DSP engine for installed sound applications

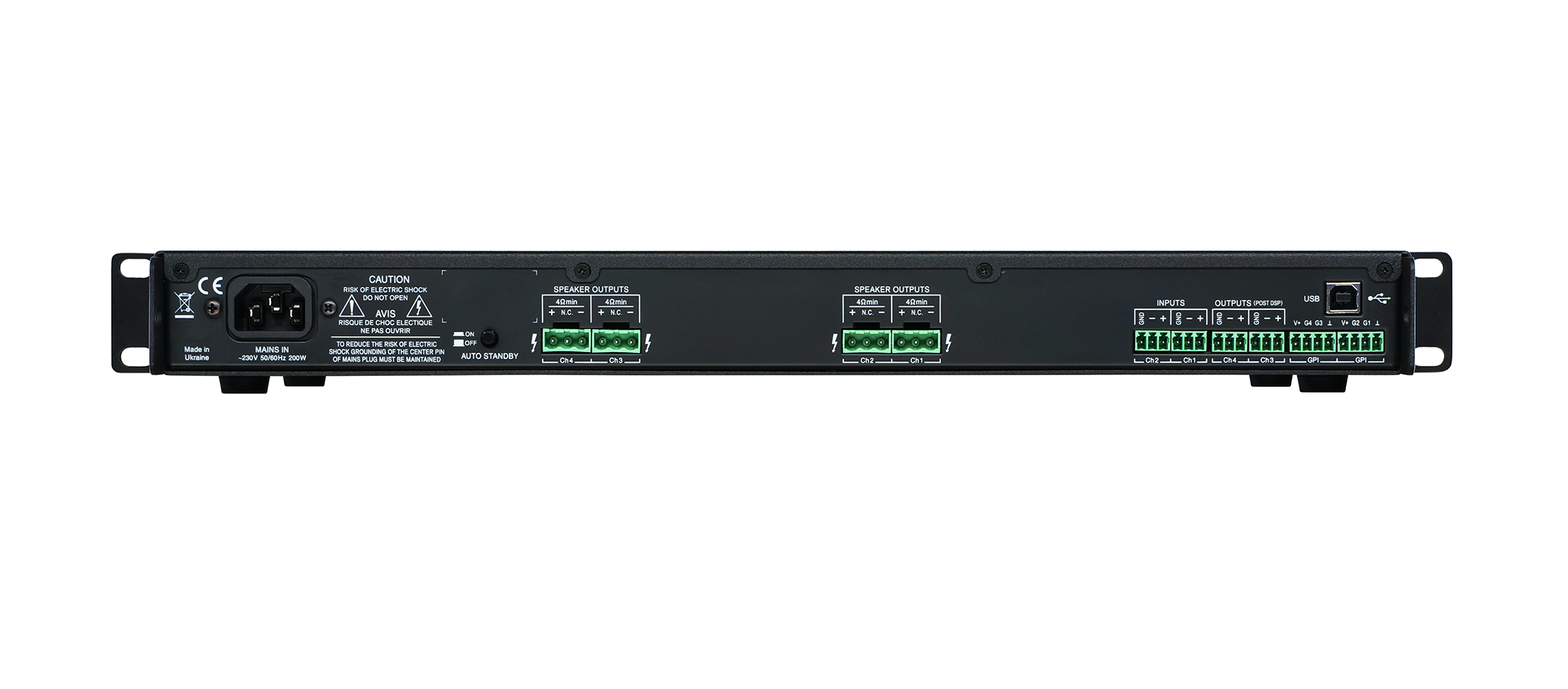

2 balanced mono inputs
2 balanced Post DSP line outputs
4 ports for remote level control (Euroblock connectors)
USB port for parameters setting via personal computer
Specialized control software ParkEditor for parameters setting (including creation of big projects, consisting of many amplifiers; speakers library)
Detachable power cord
1U height

MODEL	TA604	TA604L	TA604D	TA604DL
Number of Channels	4	4	4	4
Output Power per Channel, 4 Ω	150 W	-	150 W	-
Output Power per Channel, 8 Ω	75 W	-	75 W	-
Output Power per Channel, 70/100 В	-	150 W	-	150 W
Frequncy Range	20 Hz- 20 kHz	100 Hz - 20 kHz HPF 100 Hz 24 dB/oct	20 Hz- 20 kHz	100 Hz - 20 kHz HPF 100 Hz 24 dB/oct
Sensitivity	0.775 V	0.775 V	0.775 V	0.775 V
Total Harmonic Distortion	0.02% (20 Hz - 20 kHz)	0.02% (20 Hz - 20 kHz)	0.02% (20 Hz - 20 kHz)	0.02% (20 Hz - 20 kHz)
Crosstalk	60 dB (1 kHz)	60 dB (1 kHz)	60 dB (1 kHz)	60 dB (1 kHz)
Signal-to-Noise Ratio	100 dB (unweighted)	100 dB (unweighted)	100 dB (unweighted)	100 dB (unweighted)
Input Impedance	10 kOhms (balanced)	10 kOhms (balanced)	10 kOhms (balanced)	10 kOhms (balanced)
Power Requirements	~ 230 V, 50/60 Hz	~ 230 V, 50/60 Hz	~ 230 V, 50/60 Hz	~ 230 V, 50/60 Hz
Height	1U	1U	1U	1U
Depth in Rack	295	295	295	295
Dimensions (W,H,D)	478 x 44 x 300	478 x 44 x 300	478 x 44 x 300	478 x 44 x 300
Weight	4.2 kg	9.2 kg	4.4 kg	9.4 kg
Power Consumption:
- Pink noise, 1/8 power @ 4Ω	120W	120W	120W	120W
- STBY	9W	9W	14W	14W

DSP engine
- Sampling Rate	-	-	48 kHz	48 kHz
- DAC / ADC	-	-	24-bit	24-bit
- Internal Processing	-	-	56-bit	56-bit
