Park Audio™

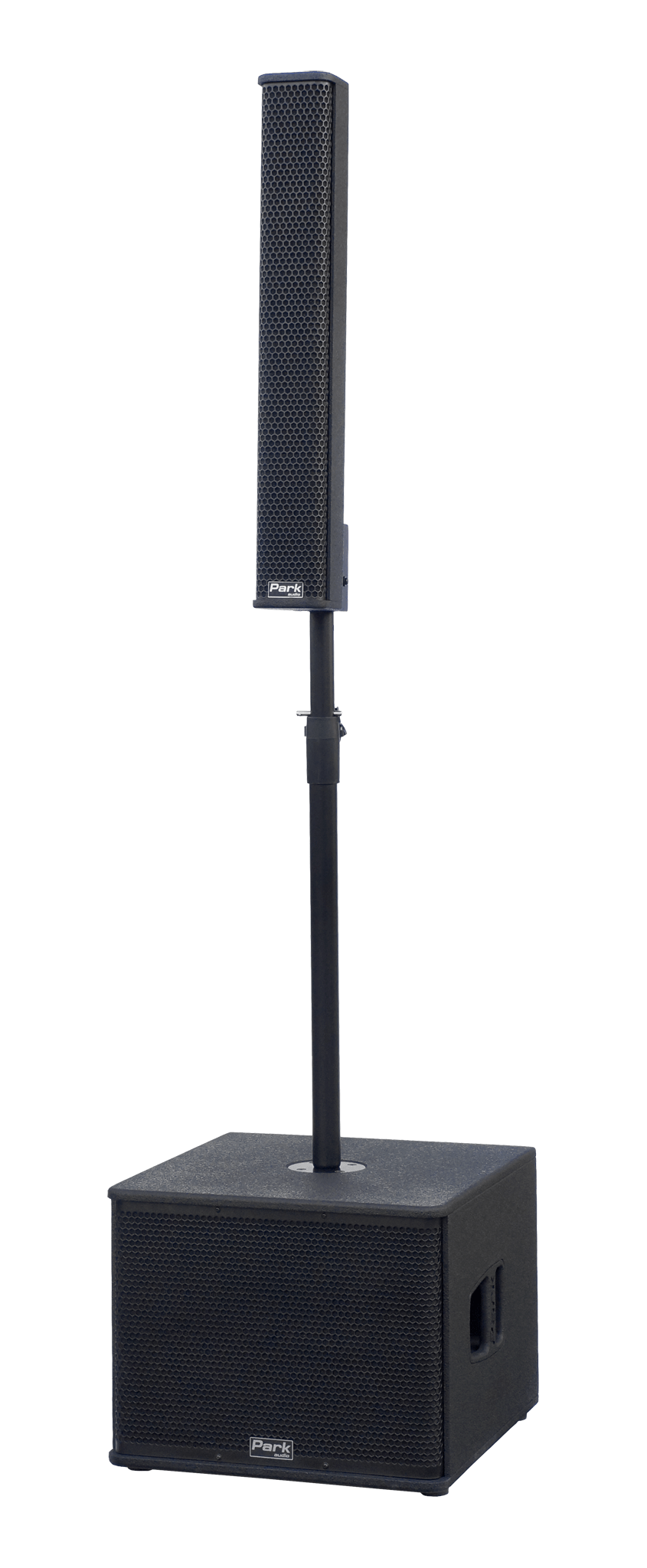

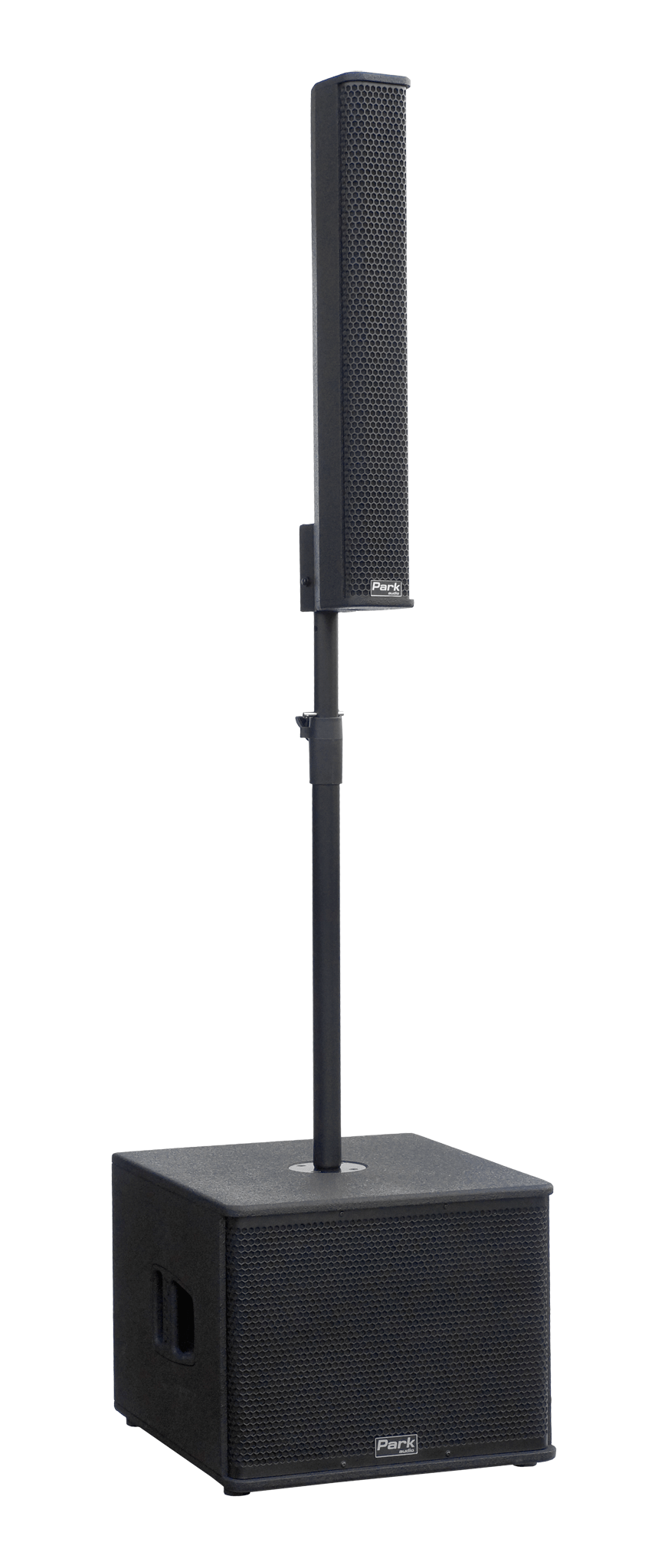

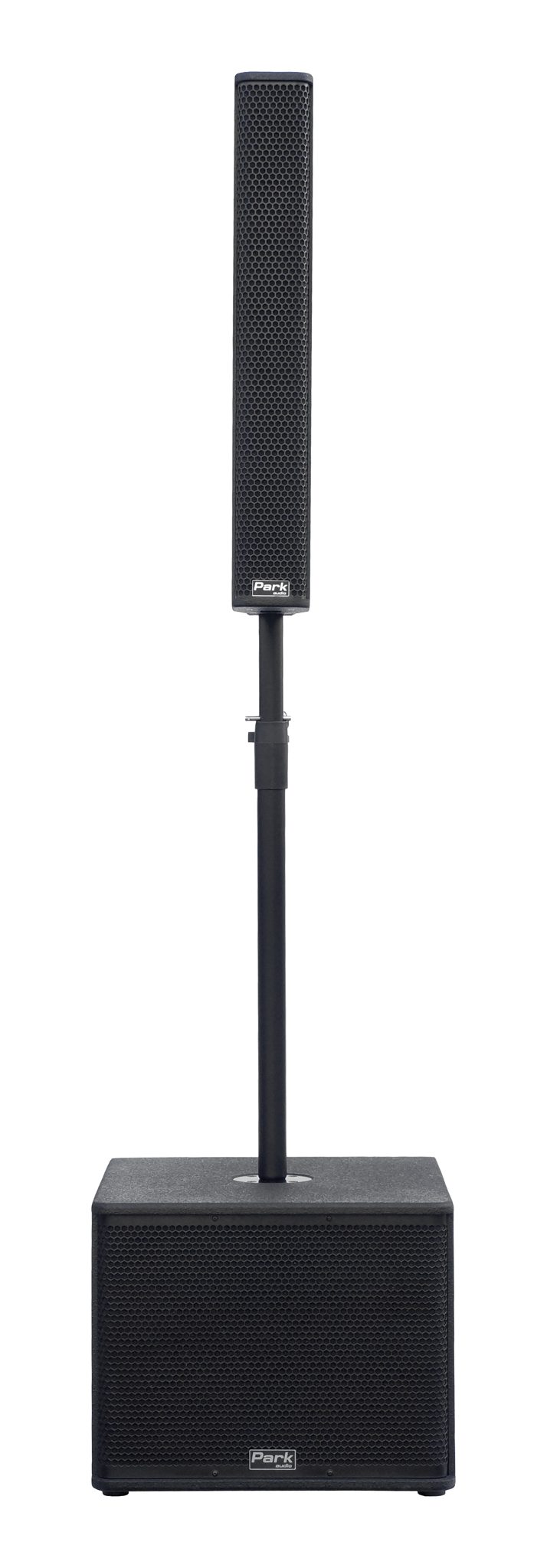

SPIKE 3812
Application
Well-suited for indoor and outdoor usage:
multi-purpose spaces, bands, restaurants, churches, malls and gymnasiums.Kit contents:
- VA308 Sound Column — 2pcs.
- ND112-P Active Subwoofer — 2pcs.
- Adjustable Speaker Stand (König & Meyer) — 2pcs.
Active PA Sytems:
- Line source loudspeaker — sound column composed of 8 x 3” full range speakers
- Adjustable vertical tilt from -5° to +5°
- The active subwoofer with 12” loudspeaker (neodymium magnet)
- Integrated in subwoofer amplifier 2 х700 W RMS with powerful DSP engine
- Three preset equalization settings
- Frequency range 46Hz — 17kHz
- Coverage140°H x 15°V (array effect)
- Maximum SPL 102dB SPL/12m
- Adjustable speaker stand with vibration-free connection
| MODEL | SPIKE3812 |
|---|---|

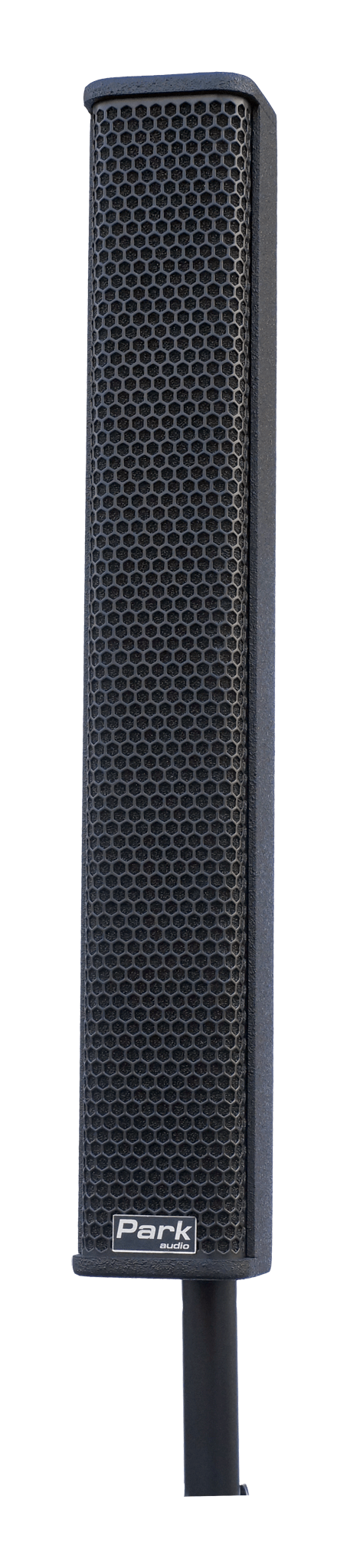

| VA308 Speaker | |
| Configuration | Line source loudspeaker - sound column |
| Transducers | 8 x 3 "dia Faital-pro full range speaker |
| Acoustic Design | Trapezoid cabinet, sealed box |
| Power Handling (nominal/cont.) | 160 / 320 W |
| Impedance | 8 Ohms |
| Frequency Response* | 190 Hz - 17 kHz |
| Axial Sensitivity | 98 dB |
| Maximum Output ** | 102 dB / 12 m |
| Coverage: | |
| – horizontal | 140° |
| – vertical | 15° (array effect) |
| Weight | 7.7 kg |
| Dimensions: | |
| – width | 110 mm |
| – height | 710 mm |
| – depth | 135 mm |
| ND112-P Subwoofer | |
| Configuration | Powered Subwoofer |
| LF Driver | 12"dia B&C SPEAKERS, voice coil 3" |
| Acoustic Design | Rectangular cabinet, bass reflex |
| Power Handling (nominal) | 400 W |
| Power Handling (continuous) | 800 W |
| Frequency Response* | 46 - 250 Hz |
| Sensitivity | 95 dB |
| Maximum Output SPL (half space)** | 127 dB / 1m |
| Weight | 21 kg |
| Dimensions (W х H х D) | 480 x 390 x 460 mm |
| Built-in Amplifier (In ND112-P) | |
| Power Rating (RMS) | 2х700 W, class D |
| Sensitivity | 775 mV |
| Impedance | 10 kOhms |
| Signal-to-Noise Ratio | 98 dB (unweighted) |
| Input/Line Output | XLR / XLR |
| Cooling System | forced*** |
| Power Requirements | ~220 V, 50/60 Hz |
| DSP Engine | |
| Sampling Rate | 48 kHz |
| DAC/ADC | 24-bit |
| Internal Processing | 56-bit |
* VA308 + ND112-P Frequency response: 46Hz — 17kHz.
** For comparison purposes and in accordance with common industry practice, maximum SPL specifications are calculations based upon transducer sensitivity, amplifier output voltage and speaker impedance.
*** With smoothly variable intensity. At a normal temperature and low output level the fan is OFF.
